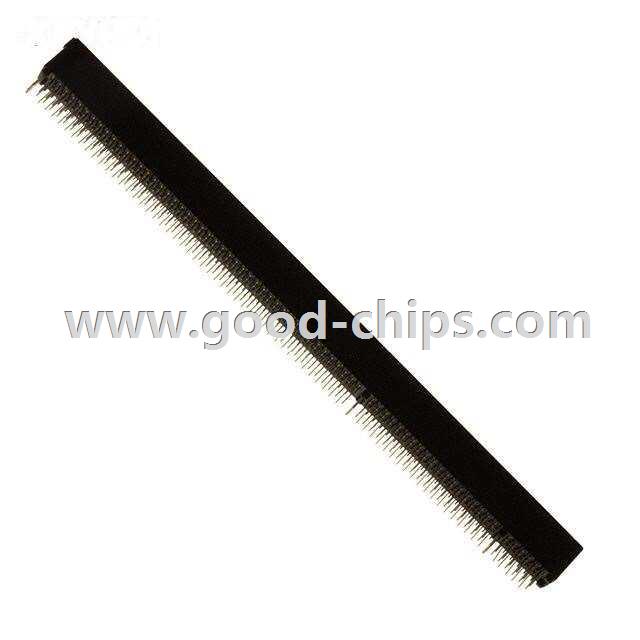

Manufacturer Part Number: | 10037901-11110TLF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Card Edge Connectors - Edgeboard Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN PCI EXPRESS 280POS VERT PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10037901-11110TLF Datasheet |
Internal Part Number | 898-10037901-11110TLF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | GXT Plating 08/Aug/2013 GXT Plating Revision 19/Nov/2013 Edge Card Drawing 12/Dec/2014 | |
PCN Assembly/Origin | PCI Devices 10/Mar/2011 | |
Category | Connectors, Interconnects | |
Family | Card Edge Connectors - Edgeboard Connectors | |
Manufacturer | Amphenol FCI | |
Series | HPCE™ | |
Packaging | Tray | |
Part Status | Active | |
Card Type | PCI Express™ | |
Gender | Female | |
Number of Positions/Bay/Row | 11; 38; 91 | |
Number of Positions | 280 | |
Card Thickness | 0.062" (1.57mm) | |
Number of Rows | 2 | |
Pitch | 0.039" (1.00mm) | |
Features | Board Guide, Locking Ramp | |
Mounting Type | Through Hole | |
Termination | Solder, Staggered | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | 15µin (0.38µm) | |
Contact Type | Cantilever | |
Color | Black | |
Flange Feature | - | |
Operating Temperature | -55°C ~ 85°C | |
Material - Insulation | Polyamide (PA), Nylon, Glass Filled | |
Read Out | Dual | |
Standard Package | 900 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10037901-11110TLF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10037901-11110TLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10037901-11110TLF is new and unused, you can buy 10037901-11110TLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10037901-11110TLF.
