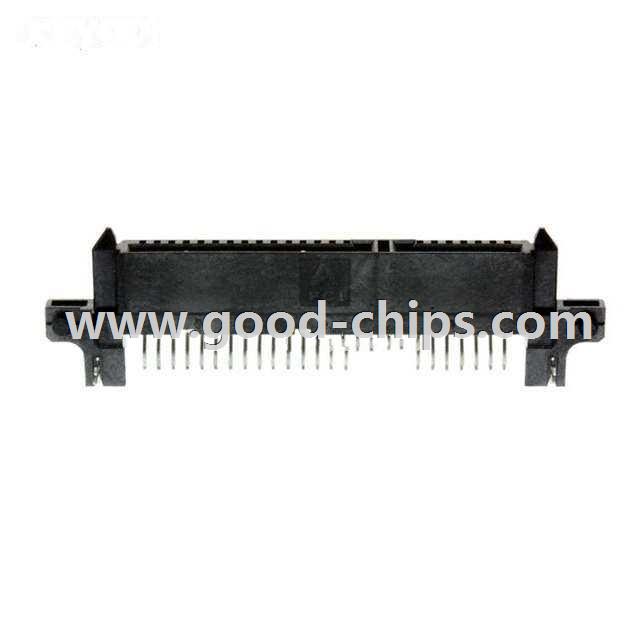

| Manufacturer Part Number: | 10031569-001LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Pluggable Connectors |
| Available Quantity: | 13400 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN RCPT SATA 22POS R/A SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10031569-001LF Datasheet |
| Internal Part Number | 898-10031569-001LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | I-O Connections Product Portfolio | |
| PCN Design/Specification | 10031569,10035202,10083196 Series 02/Nov/2009 | |
| PCN Other | SAS and SATA Receptacles Process Change 27/Feb/2015 | |
| Online Catalog | SATA | |
| Category | Connectors, Interconnects | |
| Family | Pluggable Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | Receptacle | |
| Connector Type | SATA | |
| Number of Positions | 22 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Features | Board Guide, Board Lock | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10031569-001LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10031569-001LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10031569-001LF is new and unused, you can buy 10031569-001LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10031569-001LF.
