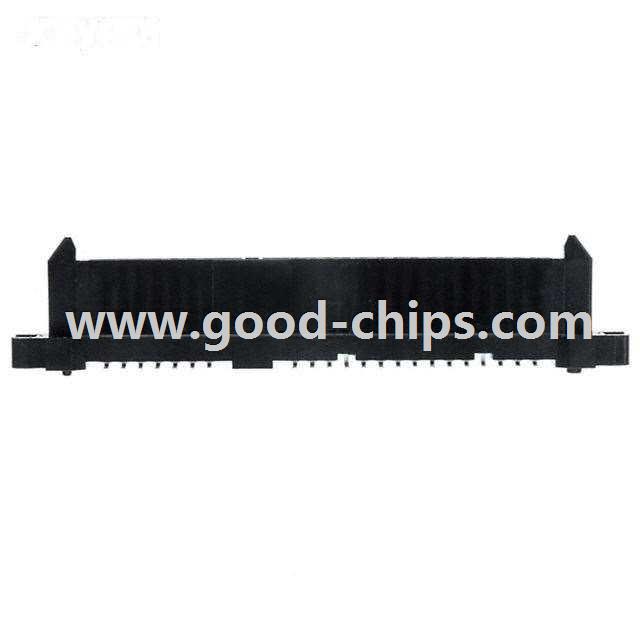

10029065-001LF

10029065-001LF
Manufacturer Part Number:10029065-001LF
Manufacturer:
Product Category:Pluggable Connectors
Available Quantity:14139 Pieces
Unit Price:Quote by Email
Description:CONN RCPT SATA 22POS VERT SMD
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 10029065-001LF Datasheet
10029065-001LF´s Parameters
Internal Part Number898-10029065-001LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesI-O Connections Product Portfolio
PCN Design/SpecificationMultiple Devices Diameter 31/Aug/2009
PCN PackagingMultiple Devices21/Oct/2015
Multiple Devices 02/Nov/2015
Online Catalog SATA
CategoryConnectors, Interconnects
FamilyPluggable Connectors
ManufacturerAmphenol FCI
Series-
PackagingTray
Part StatusActive
Connector StyleReceptacle
Connector TypeSATA
Number of Positions22
Mounting TypeSurface Mount
TerminationSolder
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Standard Package 60
Weight0.001 KG
ApplicationEmail for details
Replacement Part10029065-001LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

10029065-001LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10029065-001LF is new and unused, you can buy 10029065-001LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 10029065-001LF.
