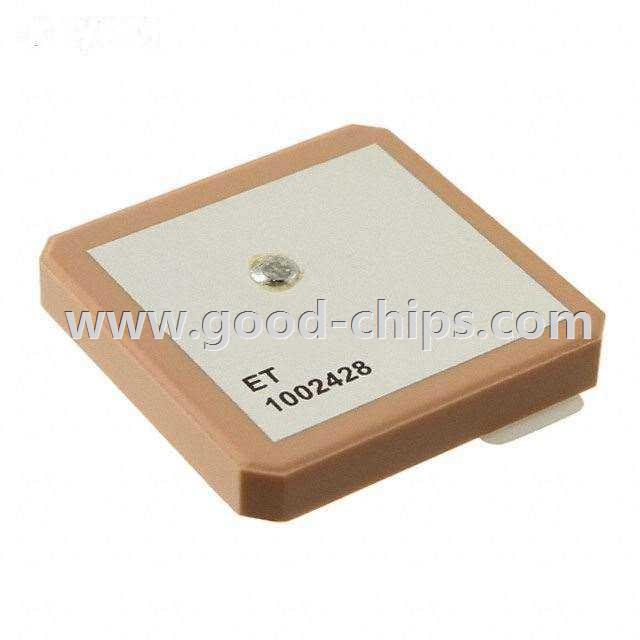

| Manufacturer Part Number: | 1002428 |
|---|---|
| Manufacturer: | Ethertronics Inc. |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.575GHz, 1.6GHz GNSS, GPS Ceramic Patch RF Antenna 787MHz ~ 2.363GHz, 799MHz ~ 2.397GHz, 803MHz ~ 2.409GHz 5.26dBic, 4.25dBic, 3.46dBic Solder Through Hole, Adhesive Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1002428 Datasheet |
| Internal Part Number | 898-1002428 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Ethertronics - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Ethertronics Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | Wide Band | |
| Frequency (Center/Band) | 1.575GHz, 1.6GHz | |
| Frequency Range | 787MHz ~ 2.363GHz, 799MHz ~ 2.397GHz, 803MHz ~ 2.409GHz | |
| Antenna Type | Ceramic Patch | |
| Number of Bands | 3 | |
| VSWR | - | |
| Return Loss | - | |
| Gain | 5.26dBic, 4.25dBic, 3.46dBic | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Through Hole, Adhesive Mount | |
| Height (Max) | 0.157" (4.00mm) | |
| Applications | GNSS, GPS | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1002428 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1002428 is in stock for immediate shipping now. We are the distributor of Ethertronics Inc. all series components. The condition of 1002428 is new and unused, you can buy 1002428 Ethertronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1002428.
