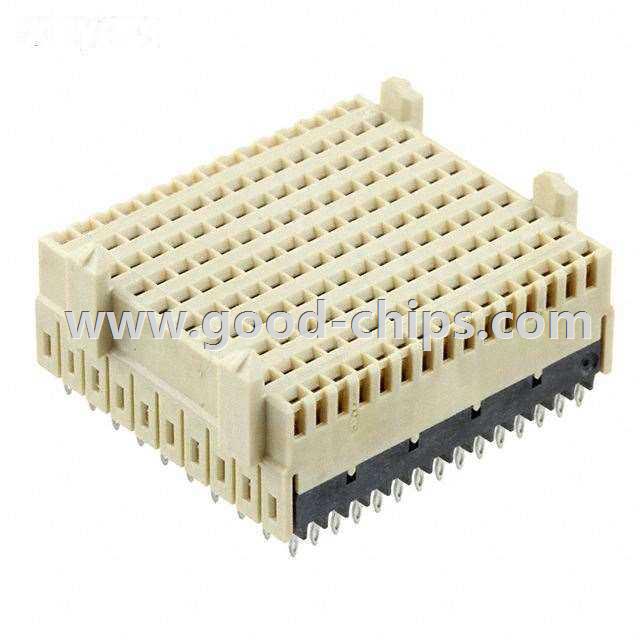

Manufacturer Part Number: | 10016537-101LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9198 Pieces |
Unit Price: | Quote by Email |
Description: | CONN RECEPT 150POS 2MM VERT PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10016537-101LF Datasheet |
Internal Part Number | 898-10016537-101LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Airmax | |
Featured Product | AirMax VS VS2 VSe Connectors | |
PCN Design/Specification | AIRMAX VS Modify PTH 14/May/2010 Airmax Housing 30/Mar.2011 | |
PCN Assembly/Origin | AirMax/Location 06/Mar/2013 | |
Online Catalog | Airmax VS® Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | Amphenol FCI | |
Series | Airmax VS® | |
Packaging | Bulk | |
Part Status | Active | |
Connector Usage | Daughtercard | |
Connector Type | Receptacle, Female Sockets | |
Connector Style | High Speed | |
Number of Positions | 150 | |
Number of Positions Loaded | All | |
Pitch | 0.055" (1.40mm) | |
Number of Rows | 15 | |
Number of Columns | 10 | |
Mounting Type | Through Hole | |
Termination | Press-Fit | |
Contact Layout, Typical | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Natural | |
Current Rating | - | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -55°C ~ 85°C | |
Voltage Rating | - | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10016537-101LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10016537-101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10016537-101LF is new and unused, you can buy 10016537-101LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10016537-101LF.
