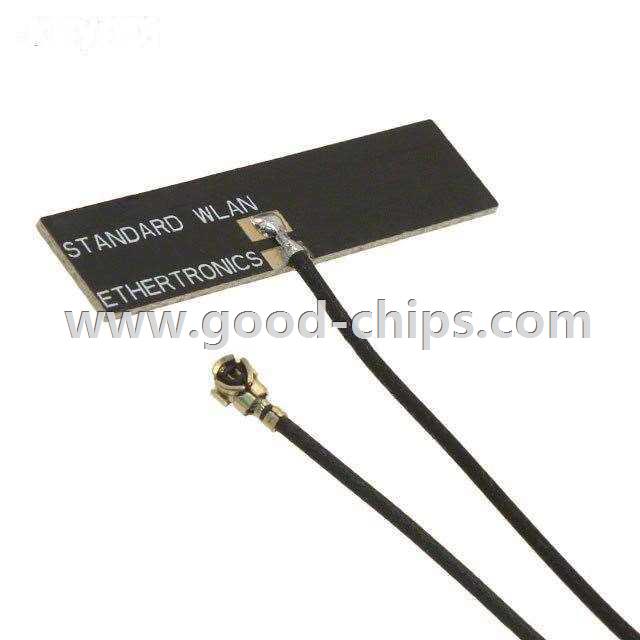

Manufacturer Part Number: | 1000615-A |
---|---|
Manufacturer: | Ethertronics Inc. |
Product Category: | RF Antennas |
Available Quantity: | 13764 Pieces |
Unit Price: | Quote by Email |
Description: | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz WLAN PCB Trace RF Antenna 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz 2.5dBi, 5dBi, 5dBi, 5dBi Adhesive |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1000615-A Datasheet |
Internal Part Number | 898-1000615-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Ethertronics - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Ethertronics Inc. | |
Series | Prestta™ | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
Frequency (Center/Band) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | |
Frequency Range | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | |
Antenna Type | PCB Trace | |
Number of Bands | 4 | |
VSWR | 2, 2.5, 2, 2.5 | |
Return Loss | - | |
Gain | 2.5dBi, 5dBi, 5dBi, 5dBi | |
Power - Max | - | |
Features | - | |
Termination | - | |
Ingress Protection | - | |
Mounting Type | Adhesive | |
Height (Max) | 0.033" (0.85mm) | |
Applications | WLAN | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1000615-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1000615-A is in stock for immediate shipping now. We are the distributor of Ethertronics Inc. all series components. The condition of 1000615-A is new and unused, you can buy 1000615-A Ethertronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1000615-A.
