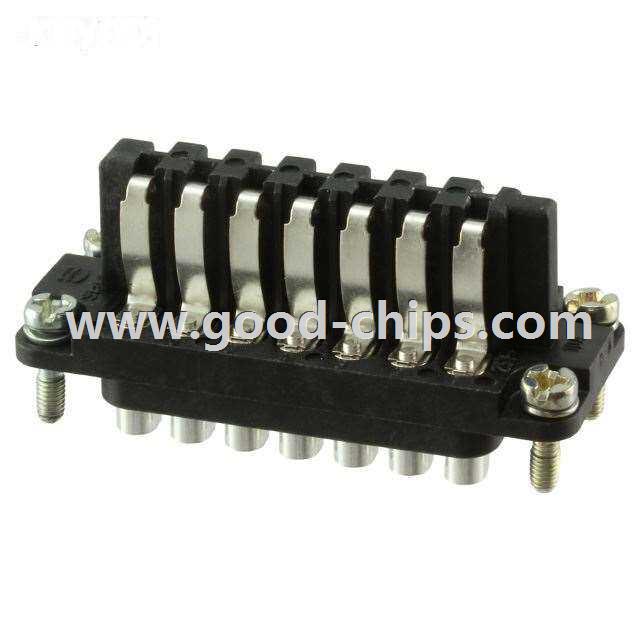

Manufacturer Part Number:09700142810
Manufacturer:
Product Category:Heavy Duty Connectors - Inserts, Modules
Available Quantity:9017 Pieces
Unit Price:Quote by Email
Description:Female Insert 14 Position Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09700142810 Datasheet
09700142810´s Parameters
Internal Part Number898-09700142810
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model09700142810.jt
09700142810.stp
Online Catalog Staf® Series
CategoryConnectors, Interconnects
FamilyHeavy Duty Connectors - Inserts, Modules
ManufacturerHarting
SeriesStaf®
PackagingBulk
Part StatusActive
Connector TypeInsert
GenderFemale
Number of Positions14
Size10A
Termination StyleSolder
Voltage Rating50V
Current Rating10A
Contact Type-
Operating Temperature-40°C ~ 100°C
Color-
Housing MaterialPolyamide (PA), Nylon
Contact MaterialCopper Alloy
Contact FinishSilver
Material Flammability RatingUL94 HB
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part09700142810
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09700142810 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09700142810 is new and unused, you can buy 09700142810 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09700142810.
