| Manufacturer Part Number: | 09693115133 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9059 Pieces |
| Unit Price: | Quote by Email |

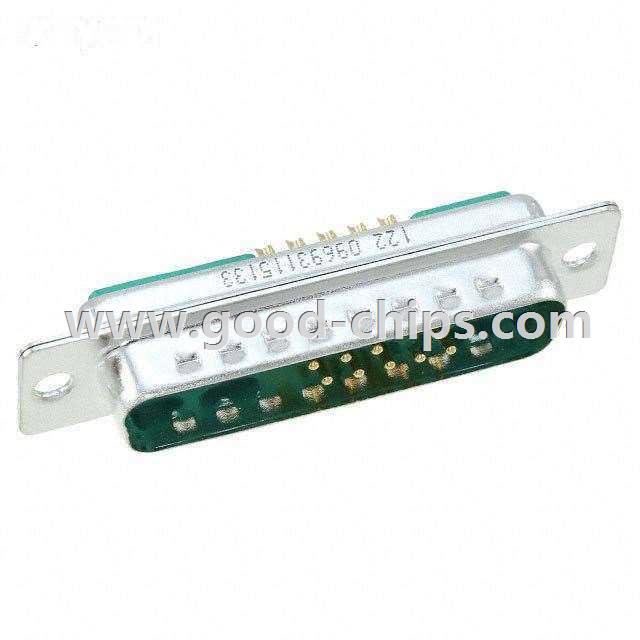

| Description: | 13 (10 + 3 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09693115133 Datasheet |
| Internal Part Number | 898-09693115133 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 13 (10 + 3 Coax or Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | |
| Contact Type | Signal and Coax or Power (Not Included) | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | Grounding Indents | |
| Shell Material, Finish | - | |
| Contact Finish | Gold or Gold-Palladium | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Polyester, Glass Filled | |
| Color | Green | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09693115133 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09693115133 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09693115133 is new and unused, you can buy 09693115133 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09693115133.
