Stocking distributor of Electronic Components

09670094715

09670094715
Manufacturer Part Number:09670094715
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9084 Pieces
Unit Price:Quote by Email

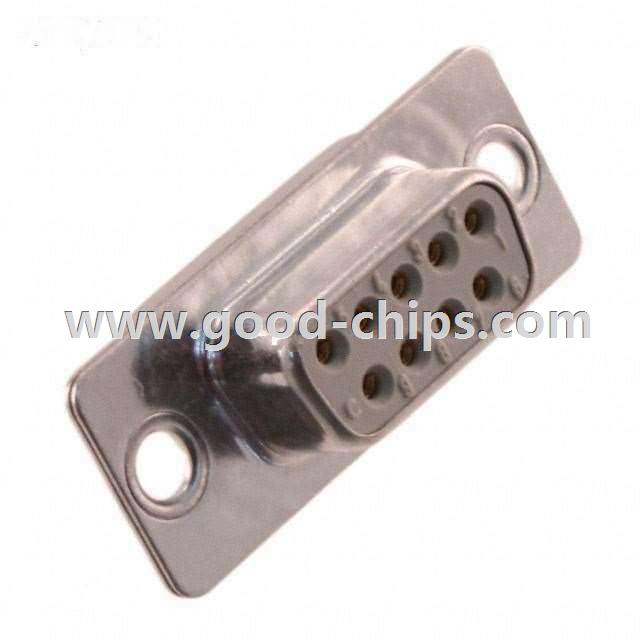

Description:9 Position D-Sub Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09670094715 Datasheet
09670094715´s Parameters
Internal Part Number898-09670094715
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog D-Sub
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerHarting
Series-
PackagingBulk
Part StatusActive
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions9
Number of Rows2
Shell Size, Connector Layout1 (DE, E)
Contact TypeSignal
Mounting TypeFree Hanging (In-Line)
Flange FeatureHousing/Shell (Unthreaded)
TerminationSolder Cup
Features-
Shell Material, FinishSteel
Contact Finish-
Contact Finish Thickness-
Ingress Protection-
Operating Temperature-55°C ~ 125°C
Voltage Rating-
Current Rating-
Housing MaterialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Color-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part09670094715
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09670094715 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09670094715 is new and unused, you can buy 09670094715 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09670094715.
