| Manufacturer Part Number: | 09661286702 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9098 Pieces |
| Unit Price: | Quote by Email |

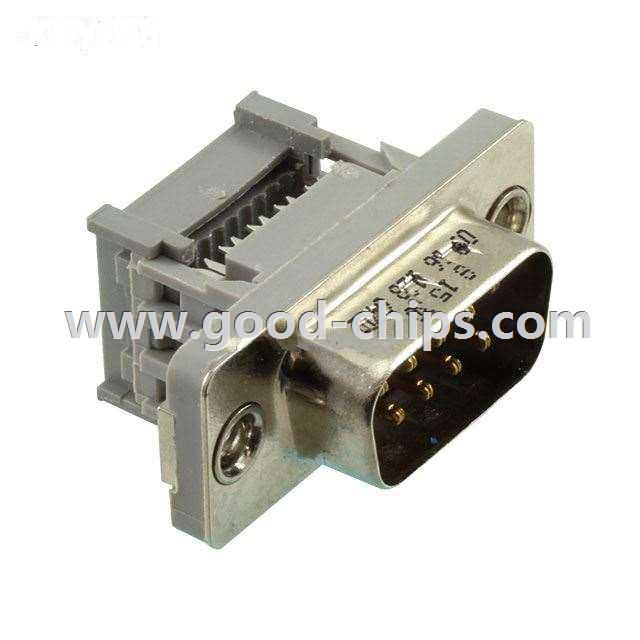

| Description: | 9 Position D-Sub Plug, Male Pins Connector, Panel Mount IDC, Ribbon Cable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09661286702 Datasheet |
| Internal Part Number | 898-09661286702 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | D-SUB IDC Design 20/Oct/2014 | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | IDC, Ribbon Cable | |
| Features | Feed Through, Grounding Indents | |
| Shell Material, Finish | Steel | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09661286702 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09661286702 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09661286702 is new and unused, you can buy 09661286702 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09661286702.
