| Manufacturer Part Number: | 09643247232 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9032 Pieces |
| Unit Price: | Quote by Email |

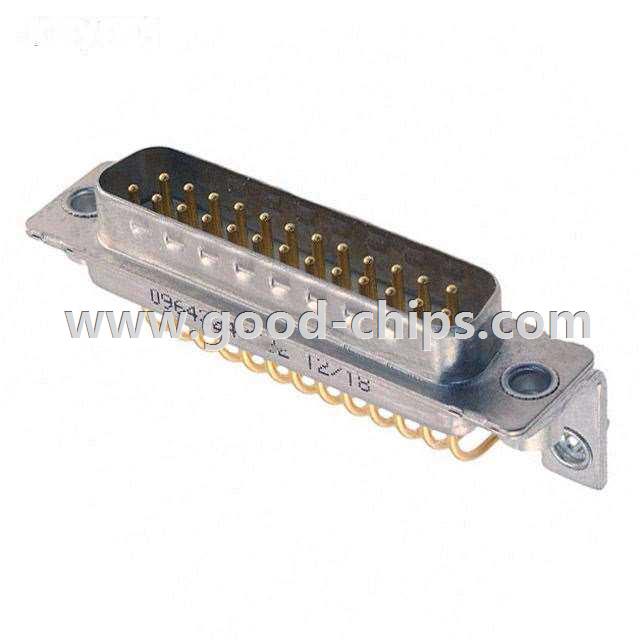

| Description: | 25 Position D-Sub Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09643247232 Datasheet |
| Internal Part Number | 898-09643247232 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | F male ang 25 pins bracket clinch nut bl.stp F male ang 25 pins bracket clinch nut bl.igs F male ang 25 pins bracket clinch nut bl.wrl | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 25 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Filter, Grounding Indents, Mounting Brackets | |
| Shell Material, Finish | Steel | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | |
| Color | Natural | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09643247232 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09643247232 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09643247232 is new and unused, you can buy 09643247232 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09643247232.
