| Manufacturer Part Number: | 09565527613 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9815 Pieces |
| Unit Price: | Quote by Email |

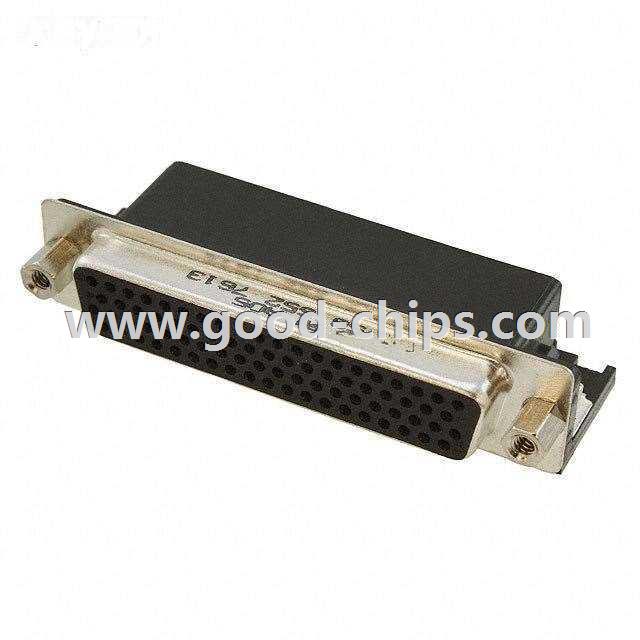

| Description: | 78 Position D-Sub, High Density Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09565527613 Datasheet |
| Internal Part Number | 898-09565527613 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 0956552x613.jt 0956552x613.stp | |
| Online Catalog | D-Sub | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 78 | |
| Number of Rows | 4 | |
| Shell Size, Connector Layout | 5 (DD, D) High Density | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side, Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 2A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | Black | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09565527613 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09565527613 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09565527613 is new and unused, you can buy 09565527613 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09565527613.
