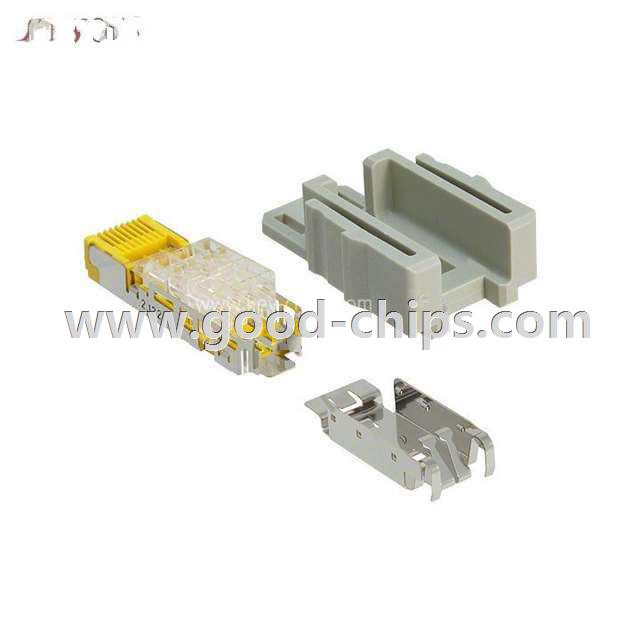

| Manufacturer Part Number: | 09454001560 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Modular Connectors - Plugs |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |
| Description: | Plug Modular Connector 8p8c (RJ45, Ethernet) Position Cat6 IDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09454001560 Datasheet |
| Internal Part Number | 898-09454001560 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09454001yyy.jt 09454001yyy.stp | |
| Online Catalog | Han® Modular Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Plugs | |
| Manufacturer | Harting | |
| Series | Han® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Cable Type | Round Cable, Stranded Wires | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Features | Latch Lock | |
| Shielding | - | |
| Ratings | Cat6 | |
| Ingress Protection | - | |
| Termination | IDC | |
| Length | 2.256" (57.30mm) | |
| Color | Yellow | |
| Wire Gauge | 22-27 AWG | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Contact Material | - | |
| Current Rating | 1A | |
| Voltage Rating | 30V | |
| Housing Material | Polyamide (PA), Nylon | |
| Shield Material | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09454001560 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09454001560 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09454001560 is new and unused, you can buy 09454001560 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09454001560.
