| Manufacturer Part Number: | 09400249912 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Frames |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FRAME ASSEMBLY FEMALE FOR 3MOD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09400249912 Datasheet |
| Internal Part Number | 898-09400249912 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09400249912.jt 09400249912.stp | |
| Online Catalog | Han® Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Frames | |
| Manufacturer | Harting | |
| Series | Han® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Modules | 3 | |
| Gender | Female | |
| Size | - | |
| Frame Type | Assembly Module Frame | |
| Material | Stainless Steel | |
| Color | - | |
| Operating Temperature | -40°C ~ 125°C | |

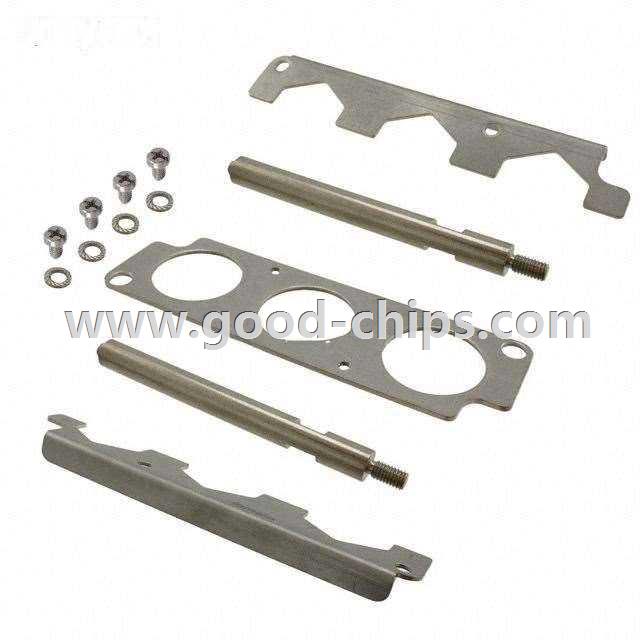

| Includes | 10 pcs - 1 Frame, 2 Pins, 4 Screws, 4 Washers | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09400249912 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09400249912 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09400249912 is new and unused, you can buy 09400249912 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09400249912.
