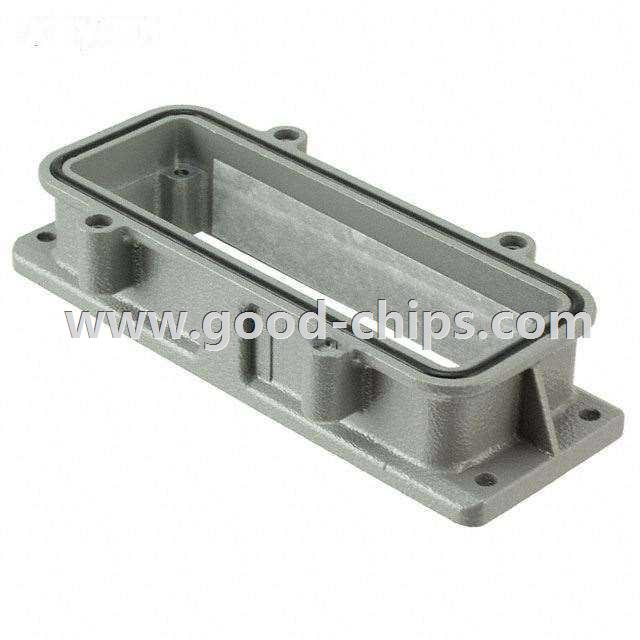

| Manufacturer Part Number: | 09390240310 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN BASE BOTTOM ENTRY |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09390240310 Datasheet |
| Internal Part Number | 898-09390240310 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Han® HP Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
| Manufacturer | Harting | |
| Series | Han® HP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Base - Panel Mount | |
| Style | Bottom Entry | |
| Size | - | |
| Lock Location | Screw Locks on Hood | |
| Thread Size | - | |
| Size / Dimension | 5.512" L x 2.583" W x 1.110" H (140.00mm x 65.60mm x 28.20mm) | |
| Housing Color | - | |
| Features | - | |
| Ingress Protection | - | |
| Housing Material | - | |
| Housing Finish | - | |
| Operating Temperature | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09390240310 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09390240310 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09390240310 is new and unused, you can buy 09390240310 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09390240310.
