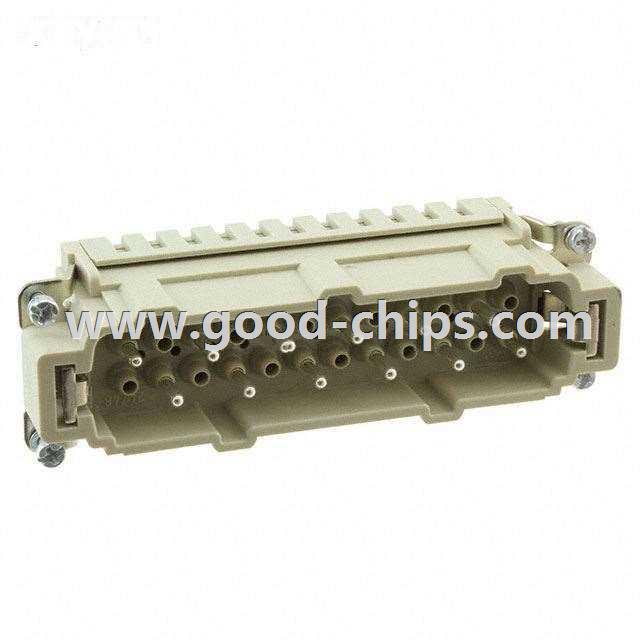

Manufacturer Part Number:09340102616
Manufacturer:
Product Category:Heavy Duty Connectors - Inserts, Modules
Available Quantity:9013 Pieces
Unit Price:Quote by Email
Description:Male Insert Gray 10+2+Ground Position Push In
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09340102616 Datasheet
09340102616´s Parameters
Internal Part Number898-09340102616
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Han® Hv E and Hv ES Series
CategoryConnectors, Interconnects
FamilyHeavy Duty Connectors - Inserts, Modules
ManufacturerHarting
SeriesHan® Hv ES
PackagingBulk
Part StatusActive
Connector TypeInsert
GenderMale
Number of Positions10+2+Ground
Size24B
Termination StylePush In
Voltage Rating830V
Current Rating16A
Contact Type-
Operating Temperature-40°C ~ 125°C
ColorGray
Housing MaterialPolycarbonate (PC)
Contact MaterialCopper Alloy
Contact FinishSilver
Material Flammability RatingUL94 V-0
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part09340102616
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09340102616 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09340102616 is new and unused, you can buy 09340102616 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09340102616.
