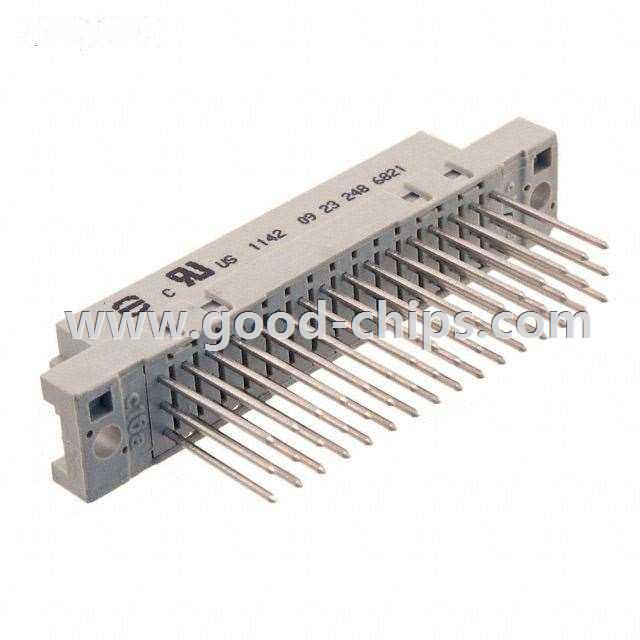

Manufacturer Part Number: | 09232486821 |
---|---|
Manufacturer: | Harting |
Product Category: | Backplane Connectors - DIN 41612 |
Available Quantity: | 9049 Pieces |
Unit Price: | Quote by Email |
Description: | DIN-SIGNAL 2C048FW-13,0C1-1 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09232486821 Datasheet |
Internal Part Number | 898-09232486821 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 09232486821.stp 09232486821.igs 09232486821.wrl | |
Online Catalog | DIN 41612 Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - DIN 41612 | |
Manufacturer | Harting | |
Series | DIN 41612 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 48 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 3 | |
Style | 2C | |
Level, Class | 2 | |
Mounting Type | Through Hole | |
Termination | Wire Wrap | |
Features | - | |
Contact Finish | - | |
Contact Finish Thickness | - | |
Operating Temperature | - | |
Current Rating | - | |
Material Flammability Rating | UL94 V-0 | |
Material - Insulation | Thermoplastic, Glass Filled | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09232486821 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09232486821 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09232486821 is new and unused, you can buy 09232486821 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09232486821.
