| Manufacturer Part Number: | 09230009950 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - Housings |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |

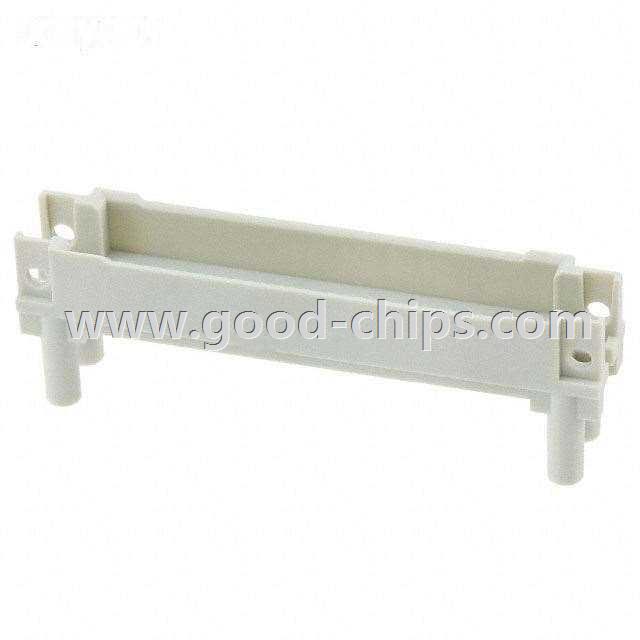

| Description: | 48 Position Shroud For Female Contacts Connector DIN 41612, Type 2C, Type 2R |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09230009950 Datasheet |
| Internal Part Number | 898-09230009950 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09230009950.wrl 09230009950.igs 09230009950.stp | |
| Online Catalog | DIN 41612 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Housings | |
| Manufacturer | Harting | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Shroud For Female Contacts | |
| Connector Style | DIN 41612, Type 2C, Type 2R | |
| Number of Positions | 48 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 3 | |
| Mounting Type | - | |
| Connector Usage | Header | |
| Features | - | |
| Color | - | |
| Note | Contacts Not Provided | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09230009950 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09230009950 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09230009950 is new and unused, you can buy 09230009950 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09230009950.
