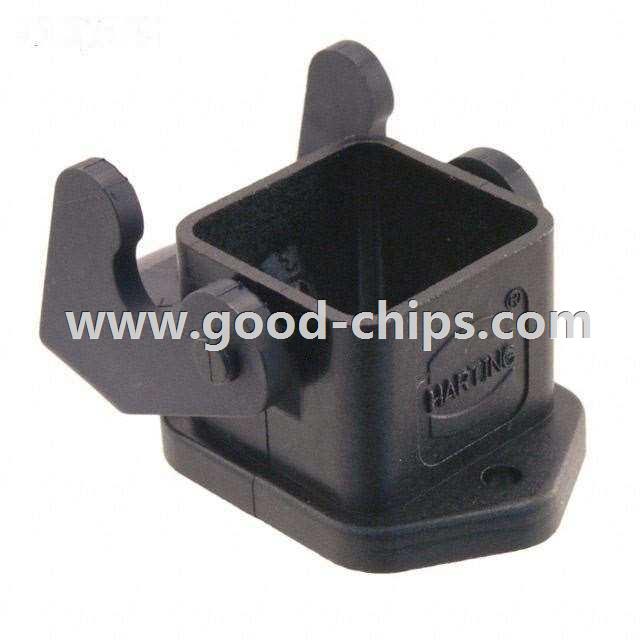

| Manufacturer Part Number: | 09200030327 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
| Available Quantity: | 9030 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN BASE BOTTOM ENTRY SZ3A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09200030327 Datasheet |
| Internal Part Number | 898-09200030327 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09200030327.jt 09200030327.stp | |
| Online Catalog | Han® A Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
| Manufacturer | Harting | |
| Series | Han® A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Base - Panel Mount | |
| Style | Bottom Entry | |
| Size | 3A | |
| Lock Location | Locking Clip (1) on Base Bottom | |
| Thread Size | - | |
| Size / Dimension | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | |
| Housing Color | Black | |
| Features | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Housing Material | Thermoplastic | |
| Housing Finish | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09200030327 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09200030327 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09200030327 is new and unused, you can buy 09200030327 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09200030327.
