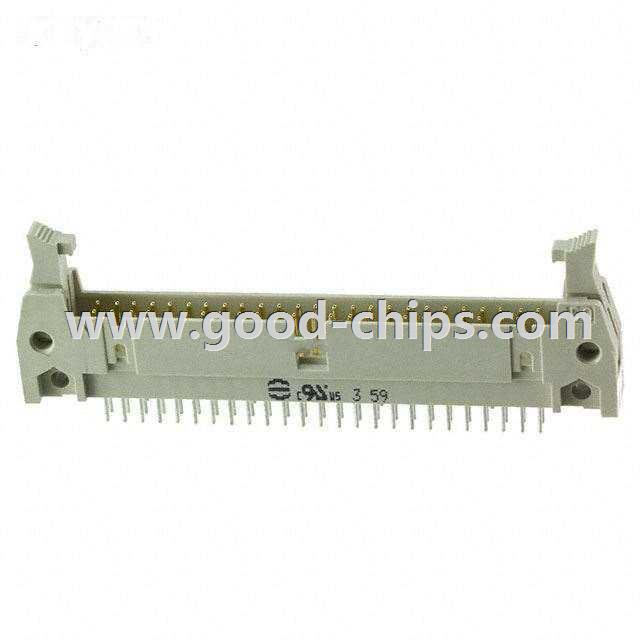

09185507902

09185507902
Manufacturer Part Number:09185507902
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9060 Pieces
Unit Price:Quote by Email
Description:50 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09185507902 Datasheet
09185507902´s Parameters
Internal Part Number898-09185507902
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model0918550xx0x.wrl
0918550xx0x.igs
0918550xx0x.stp
Online Catalog SEK Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerHarting
SeriesSEK
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions50
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.228" (5.80mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeLatch Lock/Eject Hooks, Long
Features-
Contact Finish-
Contact Finish Thickness-
ColorGray
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part09185507902
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09185507902 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09185507902 is new and unused, you can buy 09185507902 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09185507902.
