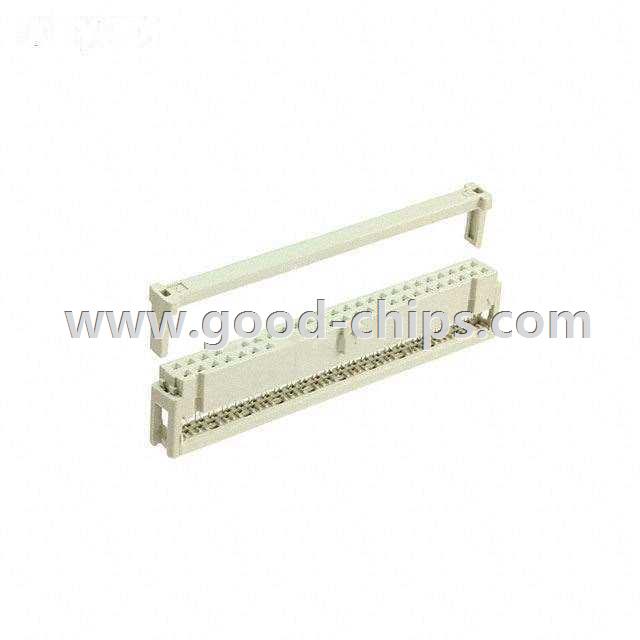

09185505813

09185505813
Manufacturer Part Number:09185505813
Manufacturer:
Product Category:Rectangular Connectors - Free Hanging, Panel Mount
Available Quantity:9105 Pieces
Unit Price:Quote by Email
Description:50 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09185505813 Datasheet
09185505813´s Parameters
Internal Part Number898-09185505813
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog SEK Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Free Hanging, Panel Mount
ManufacturerHarting
SeriesSEK
PackagingBulk
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
Number of Positions50
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Mounting TypeFree Hanging (In-Line)
Fastening Type-
Cable TerminationIDC
Wire TypeRibbon Cable
Wire Gauge26-28 AWG
FeaturesFeed Through, Polarizing Key, Strain Relief
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Color-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part09185505813
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09185505813 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09185505813 is new and unused, you can buy 09185505813 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09185505813.
