Manufacturer Part Number: | 09181269622 |
---|---|
Manufacturer: | Harting |
Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
Available Quantity: | 10024 Pieces |
Unit Price: | Quote by Email |

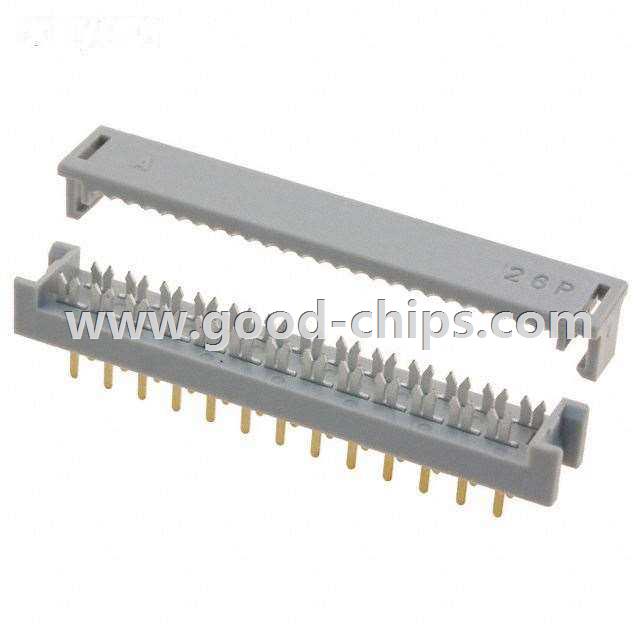

Description: | 26 Position Ribbon Cable, DIP Header Connector IDC Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 09181269622 Datasheet |
Internal Part Number | 898-09181269622 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 09181269x22.jt 09181269x22.stp | |
Online Catalog | SEK Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Board In, Direct Wire to Board | |
Manufacturer | Harting | |
Series | SEK | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Ribbon Cable, DIP Header | |
Number of Positions | 26 | |
Cable Pitch | - | |
Board-Side Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Through Hole | |
Cable Termination | IDC | |
Wire Gauge | - | |
Features | Feed Through | |
Contact Finish | - | |
Contact Finish Thickness | - | |
Color | - | |
Number of Positions Loaded | All | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 09181269622 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
09181269622 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09181269622 is new and unused, you can buy 09181269622 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09181269622.
