Stocking distributor of Electronic Components

09152122702

09152122702
Manufacturer Part Number:09152122702
Manufacturer:
Product Category:Circular Connectors
Available Quantity:9015 Pieces
Unit Price:Quote by Email

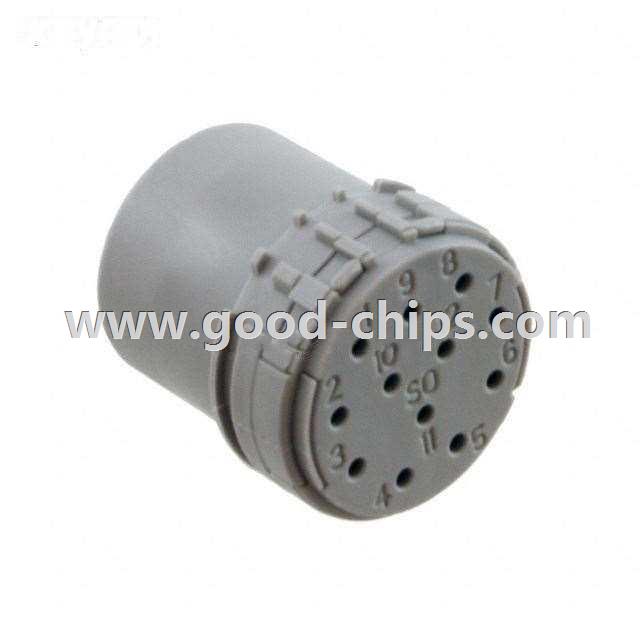

Description:12 Position Circular Connector Insert, Female Sockets Crimp Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09152122702 Datasheet
09152122702´s Parameters
Internal Part Number898-09152122702
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Han® R23 Series
CategoryConnectors, Interconnects
FamilyCircular Connectors
ManufacturerHarting
SeriesHan® R23
PackagingBulk
Part StatusActive
Connector TypeInsert, Female Sockets
Number of Positions12
Shell Size - Insert-
Shell Size, MIL-
Mounting Type-
TerminationCrimp
Fastening Type-
OrientationKeyed
Ingress Protection-
Shell Material, Finish-
Contact FinishGold
FeaturesInsert Only, Requires Shell
Contact Finish Thickness-
Current Rating7A
Voltage - Rated-
Operating Temperature-40°C ~ 115°C
Standard Package 2
Weight0.001 KG
ApplicationEmail for details
Replacement Part09152122702
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09152122702 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09152122702 is new and unused, you can buy 09152122702 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09152122702.
