| Manufacturer Part Number: | 09152122603 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Circular Connectors |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

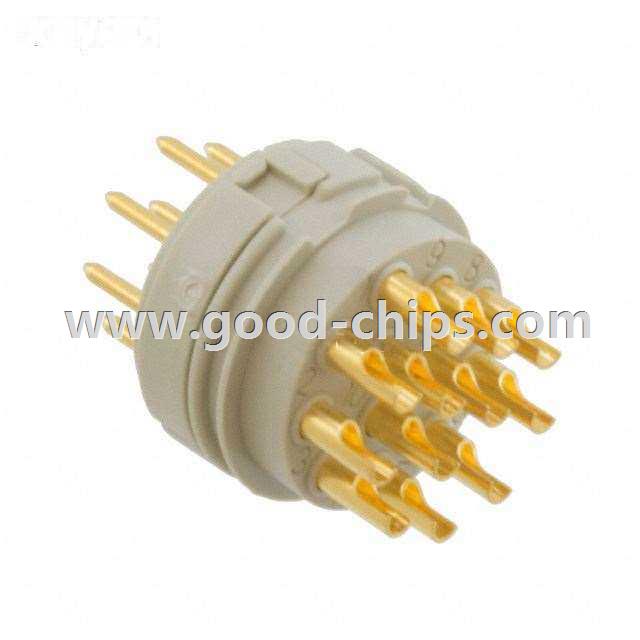

| Description: | 12 Position Circular Connector Insert, Male Pins Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09152122603 Datasheet |
| Internal Part Number | 898-09152122603 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Han® R23 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Harting | |
| Series | Han® R23 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Insert, Male Pins | |
| Number of Positions | 12 | |
| Shell Size - Insert | - | |
| Shell Size, MIL | - | |
| Mounting Type | - | |
| Termination | Solder Cup | |
| Fastening Type | - | |
| Orientation | Keyed | |
| Ingress Protection | - | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Features | Insert Only, Requires Shell | |
| Contact Finish Thickness | - | |
| Current Rating | 7A | |
| Voltage - Rated | - | |
| Operating Temperature | -40°C ~ 115°C | |
| Standard Package | 2 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09152122603 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09152122603 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09152122603 is new and unused, you can buy 09152122603 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09152122603.
