Stocking distributor of Electronic Components

09152062601

09152062601
Manufacturer Part Number:09152062601
Manufacturer:
Product Category:Circular Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

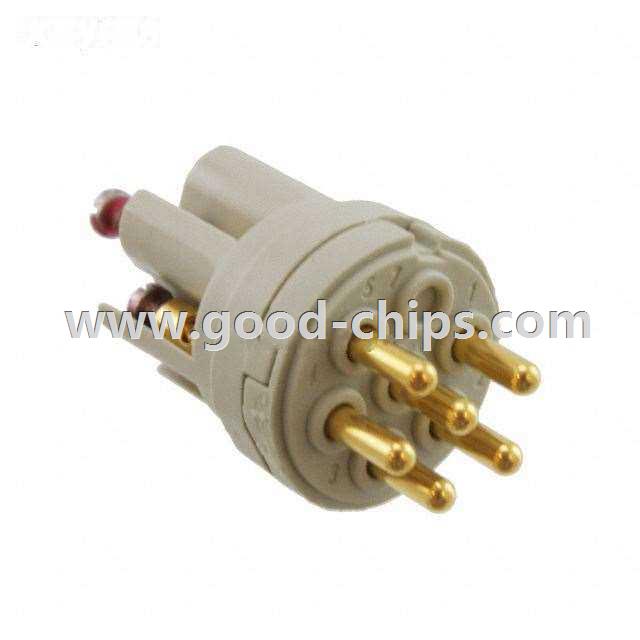

Description:6 Position Circular Connector Insert, Male Pins Screw Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09152062601 Datasheet
09152062601´s Parameters
Internal Part Number898-09152062601
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyCircular Connectors
ManufacturerHarting
SeriesHan® R23
PackagingBulk
Part StatusObsolete
Connector TypeInsert, Male Pins
Number of Positions6
Shell Size - Insert-
Shell Size, MIL-
Mounting Type-
TerminationScrew
Fastening Type-
OrientationKeyed
Ingress Protection-
Shell Material, Finish-
Contact FinishGold
FeaturesInsert Only, Requires Shell
Contact Finish Thickness-
Current Rating15A
Voltage - Rated-
Operating Temperature-40°C ~ 115°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part09152062601
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09152062601 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09152062601 is new and unused, you can buy 09152062601 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09152062601.
