09152000703

09152000703
Manufacturer Part Number:09152000703
Manufacturer:
Product Category:Circular Connectors - Housings
Available Quantity:9018 Pieces
Unit Price:Quote by Email

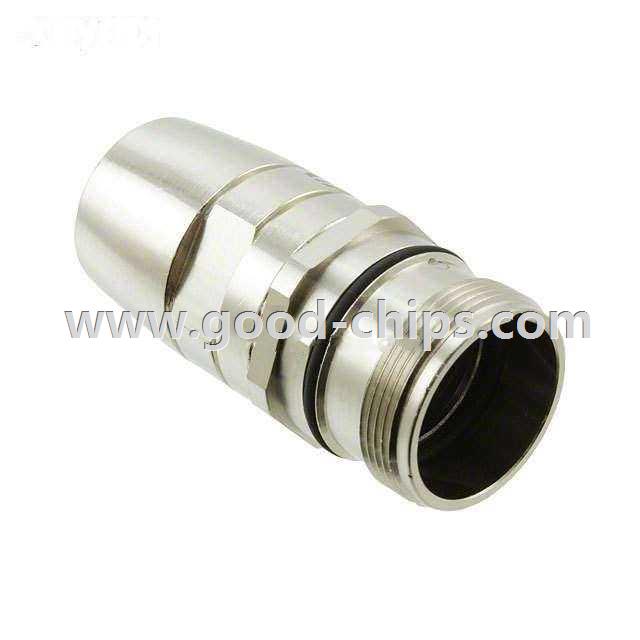

Description:Circular Connector Insert Shell Free Hanging (In-Line)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09152000703 Datasheet
09152000703´s Parameters
Internal Part Number898-09152000703
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model09152000703.jt
09152000703.stp
Online Catalog Han® R23 Series
CategoryConnectors, Interconnects
FamilyCircular Connectors - Housings
ManufacturerHarting
SeriesHan® R23
PackagingBulk
Part StatusActive
Connector TypeInsert Shell
Number of Positions-
Shell Size - Insert-
Shell Size, MIL-
Contact Type-
Contact Size-
Mounting TypeFree Hanging (In-Line)
Fastening TypeThreaded
OrientationKeyed
Shell Material, FinishCopper Zinc Alloy, Nickel Plated
Ingress ProtectionIP67 - Dust Tight, Waterproof
Features-
NoteInsert Not Provided
Standard Package 2
Weight0.001 KG
ApplicationEmail for details
Replacement Part09152000703
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09152000703 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09152000703 is new and unused, you can buy 09152000703 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09152000703.
