| Manufacturer Part Number: | 09152000303 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Circular Connectors - Housings |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

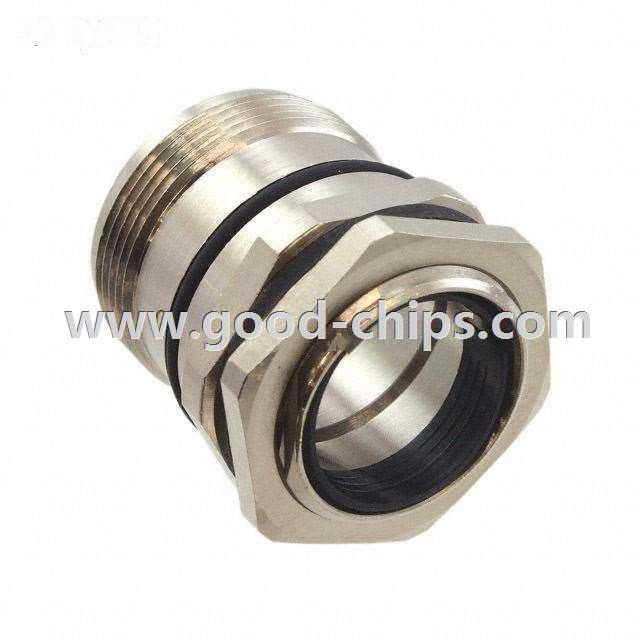

| Description: | Circular Connector Insert Shell Panel Mount, Bulkhead - Rear Side Nut |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09152000303 Datasheet |
| Internal Part Number | 898-09152000303 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09152000303.jt 09152000303.stp | |
| Online Catalog | Han® R23 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Housings | |
| Manufacturer | Harting | |
| Series | Han® R23 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Insert Shell | |
| Number of Positions | - | |
| Shell Size - Insert | - | |
| Shell Size, MIL | - | |
| Contact Type | - | |
| Contact Size | - | |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | |
| Fastening Type | Threaded | |
| Orientation | Keyed | |
| Shell Material, Finish | Copper Zinc Alloy, Nickel Plated | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Note | Insert Not Provided | |
| Standard Package | 2 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09152000303 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09152000303 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09152000303 is new and unused, you can buy 09152000303 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09152000303.
