| Manufacturer Part Number: | 09150073001 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Circular Connectors - Housings |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |

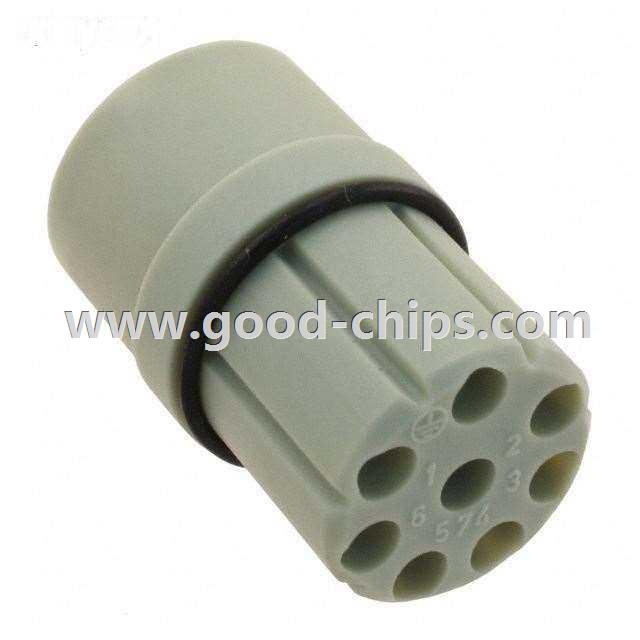

| Description: | 8 Position Circular Connector Insert for Male Contacts Insert Only, Requires Shell |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09150073001 Datasheet |
| Internal Part Number | 898-09150073001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09150073001.jt 09150073001.stp | |
| Online Catalog | R 15 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Housings | |
| Manufacturer | Harting | |
| Series | R 15 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Insert for Male Contacts | |
| Number of Positions | 8 | |
| Shell Size - Insert | - | |
| Shell Size, MIL | - | |
| Contact Type | Crimp | |
| Contact Size | - | |
| Mounting Type | - | |
| Fastening Type | - | |
| Orientation | Keyed | |
| Shell Material, Finish | - | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Features | Insert Only, Requires Shell | |
| Note | Contacts Not Provided | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09150073001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09150073001 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09150073001 is new and unused, you can buy 09150073001 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09150073001.
