| Manufacturer Part Number: | 09142100313 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Frames |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |

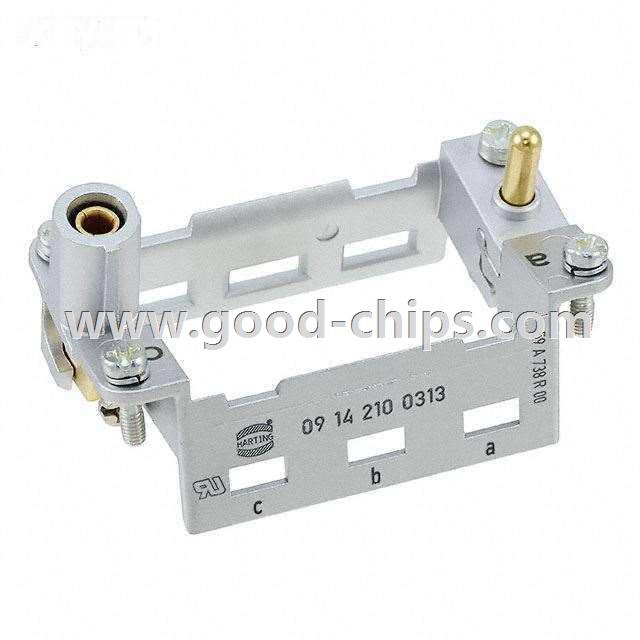

| Description: | HINGED FRAME HMC 10B F. 3 MODULE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09142100313 Datasheet |
| Internal Part Number | 898-09142100313 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Han-Modular® Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Frames | |
| Manufacturer | Harting | |
| Series | Han-Modular® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Modules | 3 | |
| Gender | Female/Male | |
| Size | 10B | |
| Frame Type | Retaining Frame, Hinged | |
| Material | Zinc | |
| Color | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Includes | 5 pcs - 1 Frame, 4 Screws | |
| Standard Package | 2 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09142100313 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09142100313 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09142100313 is new and unused, you can buy 09142100313 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09142100313.
