09120023151

09120023151
Manufacturer Part Number:09120023151
Manufacturer:
Product Category:Heavy Duty Connectors - Inserts, Modules
Available Quantity:9036 Pieces
Unit Price:Quote by Email

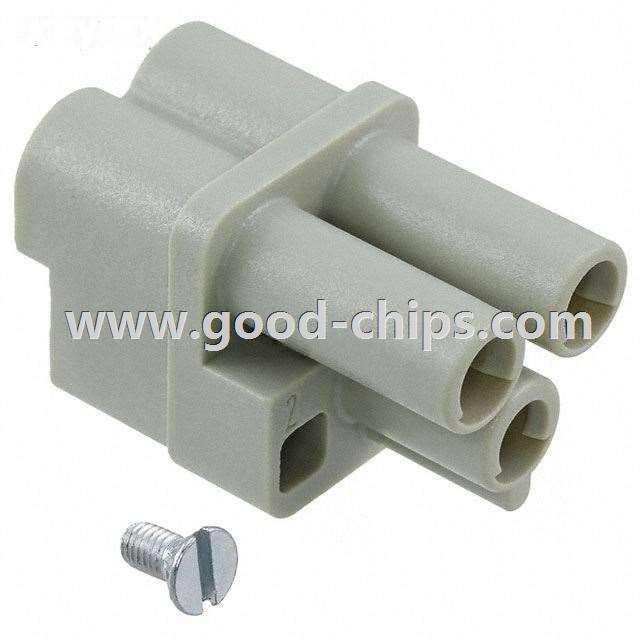

Description:Female Insert without Contacts Gray 2+Ground Position Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09120023151 Datasheet
09120023151´s Parameters
Internal Part Number898-09120023151
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model09120023151.jt
09120023151.stp
Online Catalog Han® Q Series
CategoryConnectors, Interconnects
FamilyHeavy Duty Connectors - Inserts, Modules
ManufacturerHarting
SeriesHan® Q
PackagingBulk
Part StatusActive
Connector TypeInsert without Contacts
GenderFemale
Number of Positions2+Ground
Size3A
Termination StyleCrimp
Voltage Rating400V
Current Rating40A
Contact TypeHan® C
Operating Temperature-40°C ~ 125°C
ColorGray
Housing MaterialPolycarbonate (PC)
Contact Material-
Contact Finish-
Material Flammability RatingUL94 V-0
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement Part09120023151
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09120023151 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09120023151 is new and unused, you can buy 09120023151 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09120023151.
