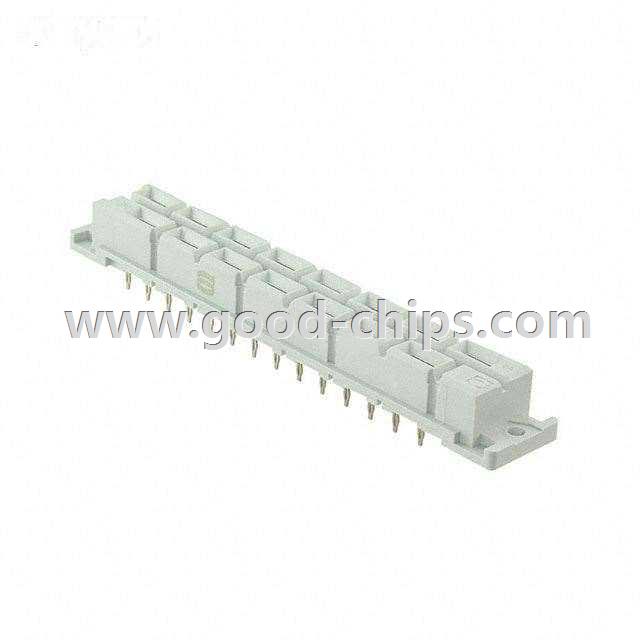

09062152854222

09062152854222
Manufacturer Part Number:09062152854222
Manufacturer:
Product Category:Backplane Connectors - DIN 41612
Available Quantity:9110 Pieces
Unit Price:Quote by Email
Description:DIN POWER H15 5.08MM 15P PRSS IN
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09062152854222 Datasheet
09062152854222´s Parameters
Internal Part Number898-09062152854222
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog DIN 41612 Series
CategoryConnectors, Interconnects
FamilyBackplane Connectors - DIN 41612
ManufacturerHarting
SeriesDIN 41612
PackagingBulk
Part StatusActive
Connector TypeHeader, Male Blades
Number of Positions15
Number of Positions LoadedAll
Pitch0.400" (10.16mm)
Number of Rows2
StyleH 15
Level, Class1
Mounting TypeThrough Hole
TerminationPress-Fit
Features-
Contact FinishGold
Contact Finish Thickness-
Operating Temperature-40°C ~ 105°C
Current Rating15A
Material Flammability RatingUL94 V-0
Material - InsulationThermoplastic, Glass Filled
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement Part09062152854222
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09062152854222 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09062152854222 is new and unused, you can buy 09062152854222 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09062152854222.
