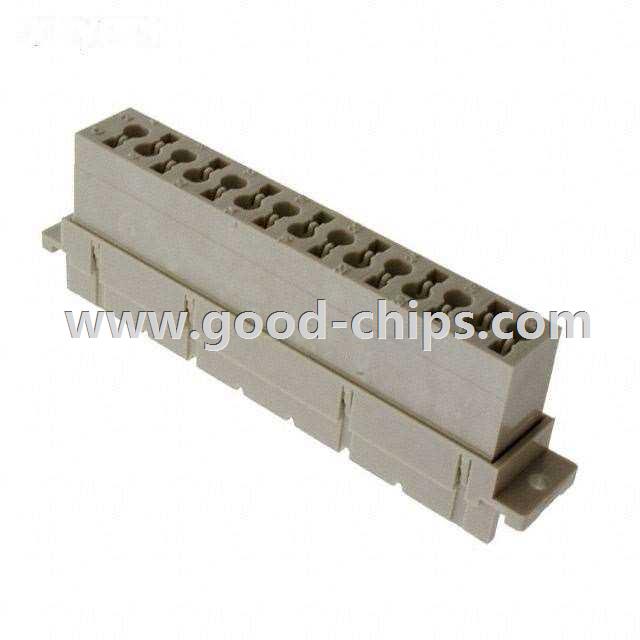

| Manufacturer Part Number: | 09060152813 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - DIN 41612 |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIN-POWER H15FS-C1-1-CC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09060152813 Datasheet |
| Internal Part Number | 898-09060152813 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09060152813.stp 09060152813.igs 09060152813.wrl | |
| Online Catalog | DIN 41612 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - DIN 41612 | |
| Manufacturer | Harting | |
| Series | DIN 41612 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 (Power) | |
| Number of Positions Loaded | All | |
| Pitch | 0.400" (10.16mm) | |
| Number of Rows | 2 | |
| Style | H 15 | |
| Level, Class | 1 | |
| Mounting Type | Panel Mount | |
| Termination | Cage Clamp | |
| Features | - | |
| Contact Finish | - | |
| Contact Finish Thickness | - | |
| Operating Temperature | - | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Material - Insulation | Thermoplastic, Glass Filled | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09060152813 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09060152813 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09060152813 is new and unused, you can buy 09060152813 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09060152813.
