Stocking distributor of Electronic Components

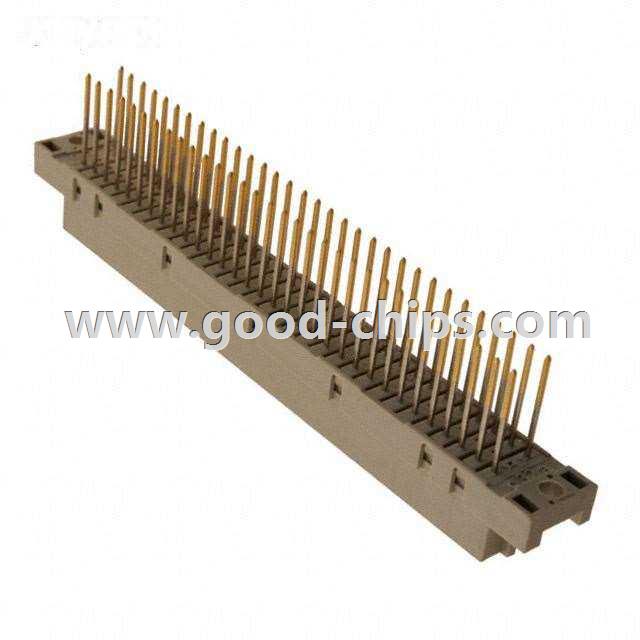

09032646878

09032646878
Manufacturer Part Number:09032646878
Manufacturer:
Product Category:Backplane Connectors - DIN 41612
Available Quantity:9016 Pieces
Unit Price:Quote by Email
Description:DIN-SIGNAL C064FW-13,0C1-2
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 09032646878 Datasheet
09032646878´s Parameters
Internal Part Number898-09032646878
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D ModelC straight female ww 96 pole.stp
C straight female ww 96 pole.igs
C straight female ww 96 pole.wrl
Online Catalog DIN 41612 Series
CategoryConnectors, Interconnects
FamilyBackplane Connectors - DIN 41612
ManufacturerHarting
SeriesDIN 41612
PackagingBulk
Part StatusActive
Connector TypeReceptacle, Female Sockets
Number of Positions96
Number of Positions Loaded64
Pitch0.100" (2.54mm)
Number of Rows3
StyleC
Level, Class2
Mounting TypeThrough Hole
TerminationWire Wrap
Features-
Contact FinishGold
Contact Finish Thickness-
Operating Temperature-
Current Rating-
Material Flammability RatingUL94 V-0
Material - InsulationThermoplastic, Glass Filled
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement Part09032646878
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

09032646878 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09032646878 is new and unused, you can buy 09032646878 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 09032646878.
