| Manufacturer Part Number: | 09030009956 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - Housings |
| Available Quantity: | 9102 Pieces |
| Unit Price: | Quote by Email |

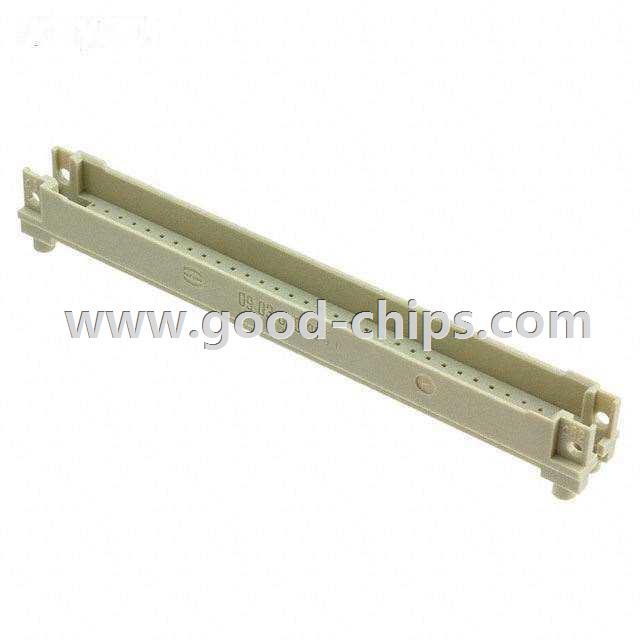

| Description: | 96 Position Shroud For Female Contacts Connector DIN 41612, Type C, Type R |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 09030009956 Datasheet |
| Internal Part Number | 898-09030009956 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 09030009956.wrl 09030009956.igs 09030009956.stp | |
| Online Catalog | DIN 41612 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Housings | |
| Manufacturer | Harting | |
| Series | DIN 41612 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Shroud For Female Contacts | |
| Connector Style | DIN 41612, Type C, Type R | |
| Number of Positions | 96 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 3 | |
| Mounting Type | - | |
| Connector Usage | - | |
| Features | - | |
| Color | - | |
| Note | Contacts Not Provided | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 09030009956 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
09030009956 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 09030009956 is new and unused, you can buy 09030009956 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 09030009956.
