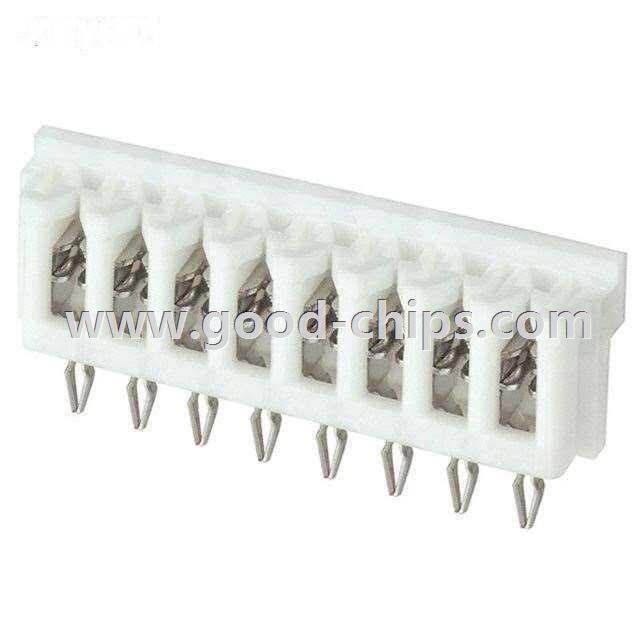

Manufacturer Part Number: | 08DB-6S(LF) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 8 Position Individual Wires Connector White IDC 24-28 AWG, Stranded Through Hole, Press-Fit |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 08DB-6S(LF) Datasheet |
Internal Part Number | 898-08DB-6S(LF) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Board In, Direct Wire to Board | |
Manufacturer | JST Sales America Inc. | |
Series | DB | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Individual Wires | |
Number of Positions | 8 | |
Cable Pitch | 0.098" (2.50mm) | |
Board-Side Pitch | 0.098" (2.50mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Through Hole, Press-Fit | |
Cable Termination | IDC | |
Wire Gauge | 24-28 AWG, Stranded | |
Features | Closed End | |
Contact Finish | Tin-Lead | |
Contact Finish Thickness | - | |
Color | White | |
Number of Positions Loaded | All | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 08DB-6S(LF) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
08DB-6S(LF) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 08DB-6S(LF) is new and unused, you can buy 08DB-6S(LF) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 08DB-6S(LF).
