| Manufacturer Part Number: | 0826-1K1T-23-F |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 10993 Pieces |
| Unit Price: | Quote by Email |

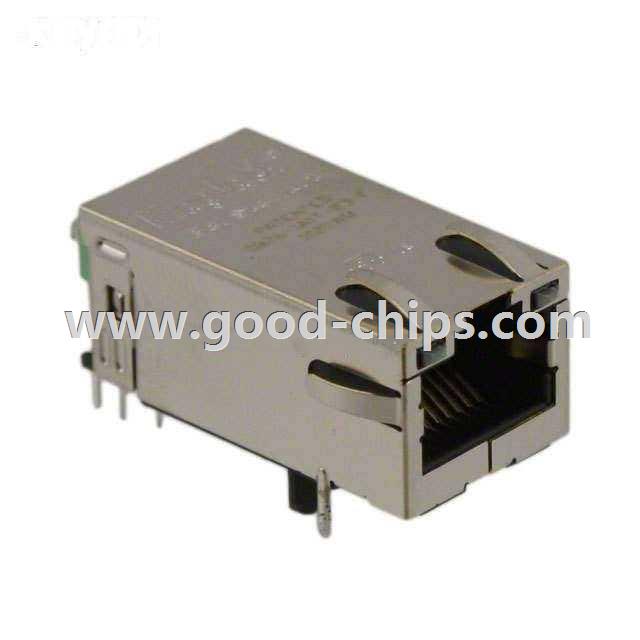

| Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0826-1K1T-23-F Datasheet |
| Internal Part Number | 898-0826-1K1T-23-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MagJack® Integrated Magnetics Modular Jacks | |
| Featured Product | Bel - MagJack Integrated Connector Modules Connectivity Solutions Magnetics Solutions | |
| Online Catalog | MagJack® Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Bel Fuse Inc. | |
| Series | MagJack® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100/1000 Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.536" (13.61mm) | |
| LED Color | Green, Yellow - Green | |
| Number of Cores per Jack | 12 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Guide | |
| Tab Direction | Up | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Shield Material | Copper Alloy | |
| Housing Material | Polyamide (PA46), Nylon 4/6 | |
| Operating Temperature | 0°C ~ 70°C | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0826-1K1T-23-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0826-1K1T-23-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of 0826-1K1T-23-F is new and unused, you can buy 0826-1K1T-23-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0826-1K1T-23-F.
