Manufacturer Part Number: | 082-504 |
---|---|
Manufacturer: | Amphenol-RF Division |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9036 Pieces |
Unit Price: | Quote by Email |

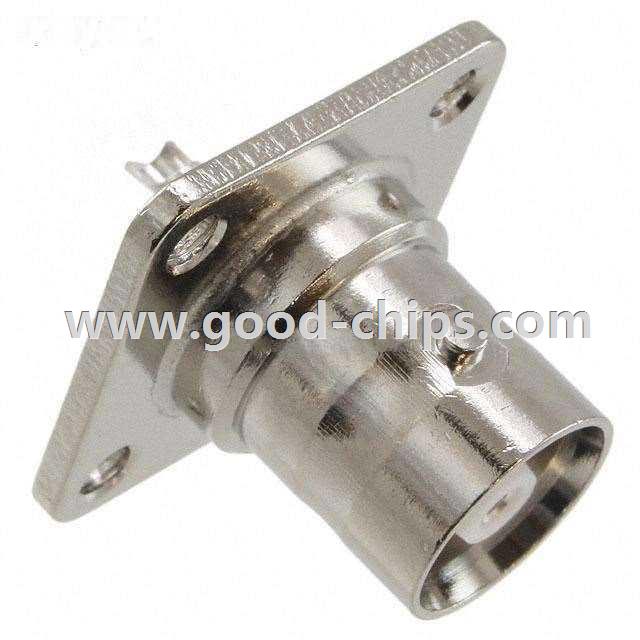

Description: | C Type Connector Receptacle, Female Socket 50 Ohm Panel Mount, Square Flange Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 082-504 Datasheet |
Internal Part Number | 898-082-504 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 082-504.igs | |
Online Catalog | C Type | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Amphenol-RF Division | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | C Type | |
Connector Type | Receptacle, Female Socket | |
Contact Termination | Solder Cup | |
Shield Termination | Solder | |
Impedance | 50 Ohm | |
Mounting Type | Panel Mount, Square Flange | |
Cable Group | - | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 11GHz | |
Features | Extended Insulation | |
Housing Color | Silver | |
Ingress Protection | Weatherproof | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Silver | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 1500V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 082-504 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
082-504 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 082-504 is new and unused, you can buy 082-504 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 082-504.
