| Manufacturer Part Number: | 0811-2X8R-28-F |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

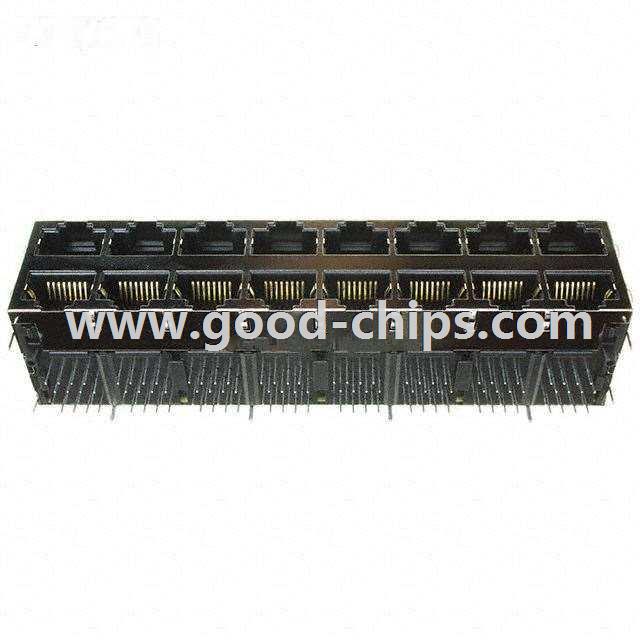

| Description: | 16 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0811-2X8R-28-F Datasheet |
| Internal Part Number | 898-0811-2X8R-28-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MagJack® Integrated Magnetics Modular Jacks | |
| Featured Product | Bel - MagJack Integrated Connector Modules Connectivity Solutions Magnetics Solutions | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Bel Fuse Inc. | |
| Series | MagJack® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 16 | |
| Number of Rows | 2 | |
| Applications | 10/100 Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 1.004" (25.50mm) | |
| LED Color | Does Not Contain LED | |
| Number of Cores per Jack | 4 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Guide | |
| Tab Direction | Up and Down | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Shield Material | Copper Alloy | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Operating Temperature | 0°C ~ 70°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0811-2X8R-28-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0811-2X8R-28-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of 0811-2X8R-28-F is new and unused, you can buy 0811-2X8R-28-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0811-2X8R-28-F.
