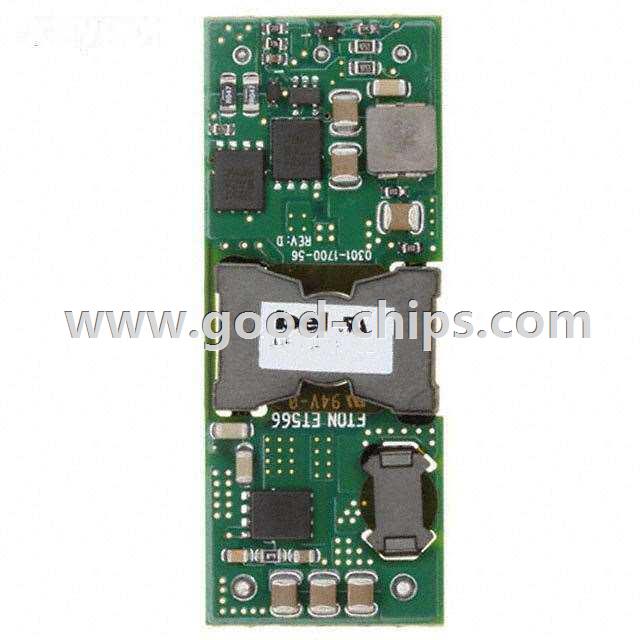

| Manufacturer Part Number: | 07CR-12S12LG |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 48V 140W 4:1 1/8BRICK |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 07CR-12S12LG Datasheet |
| Internal Part Number | 898-07CR-12S12LG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Power Solutions and Protection | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Bel Fuse Inc. | |
| Series | 07CR Cimarron | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 60V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 12A | |
| Power (Watts) - Manufacture Series | 140W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 5-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.8mm x 10.4mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 140W | |
| Standard Package | 18 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 07CR-12S12LG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
07CR-12S12LG is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of 07CR-12S12LG is new and unused, you can buy 07CR-12S12LG Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 07CR-12S12LG.
