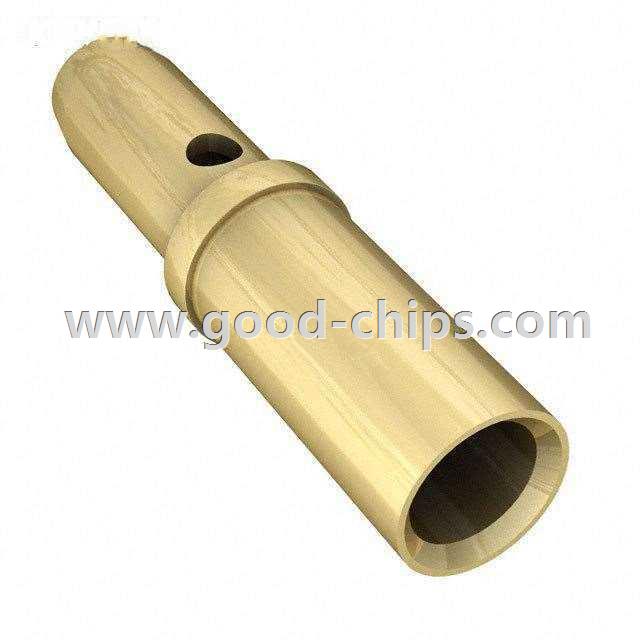

| Manufacturer Part Number: | 0714-0-33-15-07-27-10-0 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Available Quantity: | 9629 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) Crimp Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0714-0-33-15-07-27-10-0 Datasheet |
| Internal Part Number | 898-0714-0-33-15-07-27-10-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Mill-Max Manufacturing Corp | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin Receptacles, Socket Connectors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 0714 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Tail Type | Crimp | |
| Termination | Solder | |
| Length - Overall | 0.518" (13.16mm) | |
| Accepts Pin Diameter | 0.065" ~ 0.082" (1.65mm ~ 2.08mm) | |
| Mounting Hole Diameter | - | |
| Pin Hole Diameter | 0.107" (2.72mm) | |
| Flange Diameter | 0.132" (3.35mm) | |
| Tail Diameter | - | |
| Socket Depth | 0.214" (5.44mm) | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Board Thickness | - | |
| Insertion Force | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0714-0-33-15-07-27-10-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0714-0-33-15-07-27-10-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 0714-0-33-15-07-27-10-0 is new and unused, you can buy 0714-0-33-15-07-27-10-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0714-0-33-15-07-27-10-0.
