Manufacturer Part Number: | 06FMN-SMT-A-TF(LF)(SN) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | FFC, FPC (Flat Flexible) Connectors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |

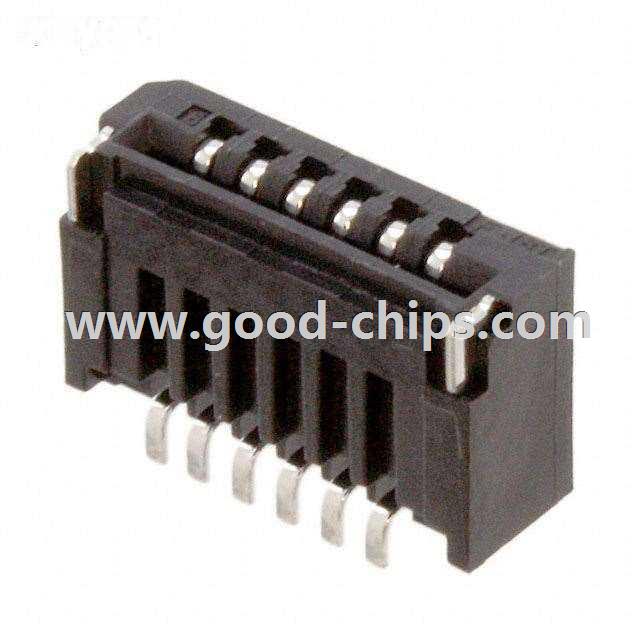

Description: | 6 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 06FMN-SMT-A-TF(LF)(SN) Datasheet |
Internal Part Number | 898-06FMN-SMT-A-TF(LF)(SN) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | FMN Series | |
Category | Connectors, Interconnects | |
Family | FFC, FPC (Flat Flexible) Connectors | |
Manufacturer | JST Sales America Inc. | |
Series | FMN | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Flat Flex Type | FFC | |
Mounting Type | Surface Mount, Right Angle | |
Connector/Contact Type | Contacts, Top | |
Number of Positions | 6 | |
Pitch | 0.039" (1.00mm) | |
Termination | Solder | |
FFC, FCB Thickness | 0.30mm | |
Height Above Board | 0.118" (3.00mm) | |
Locking Feature | - | |
Cable End Type | Straight | |
Contact Material | Phosphor Bronze | |
Contact Finish | Tin | |
Housing Material | Polyamide (PA6T), Nylon 6T | |
Actuator Material | - | |
Features | Low Insertion Force (LIF) | |
Voltage Rating | 50V | |
Operating Temperature | -25°C ~ 85°C | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 0.5A | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 06FMN-SMT-A-TF(LF)(SN) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
06FMN-SMT-A-TF(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 06FMN-SMT-A-TF(LF)(SN) is new and unused, you can buy 06FMN-SMT-A-TF(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 06FMN-SMT-A-TF(LF)(SN).
