Manufacturer Part Number: | 06AN2D |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
Available Quantity: | 9082 Pieces |
Unit Price: | Quote by Email |

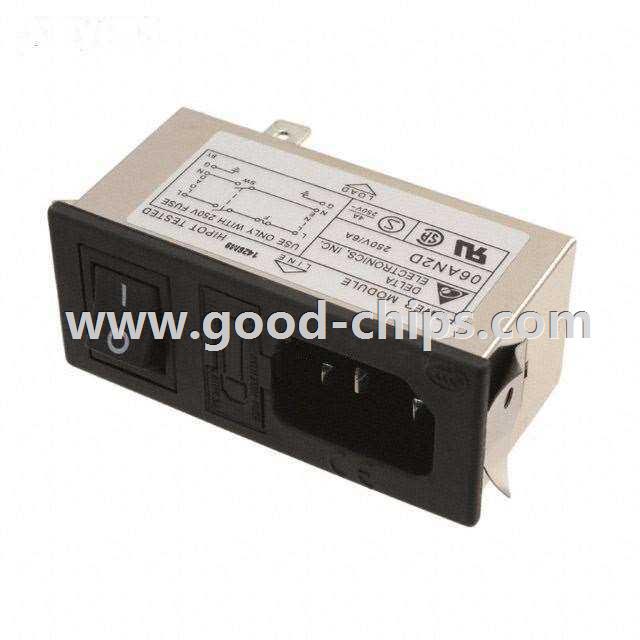

Description: | Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 06AN2D Datasheet |
Internal Part Number | 898-06AN2D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMI Filter Products | |
Online Catalog | A and AN Series | |
Category | Connectors, Interconnects | |
Family | Power Entry Connectors - Inlets, Outlets, Modules | |
Manufacturer | Delta Electronics | |
Series | A | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | IEC 320-C14 | |
Connector Type | Receptacle, Male Blades - Module | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 6A | |
Voltage - UL | 115/250VAC | |
Filter Type | Unfiltered - Commercial | |
Fuse | Yes | |
Number of Positions | 3 | |
Mounting Type | Panel Mount, Snap-In | |
Termination | Quick Connect | |
Switch Features | Switch On-Off | |
Features | - | |
Fuse Holder, Drawer | Fuse Holder | |
Panel Cutout Dimensions | Rectangular - 66.00mm x 27.00mm | |
Panel Thickness | 0.040" ~ 0.070" (1.02mm ~ 1.78mm) | |
Material Flammability Rating | UL94 V-0 | |
Ingress Protection | - | |
Approvals | CE, CSA, SEMKO, UL | |
Standard Package | 140 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 06AN2D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
06AN2D is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 06AN2D is new and unused, you can buy 06AN2D Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 06AN2D.
