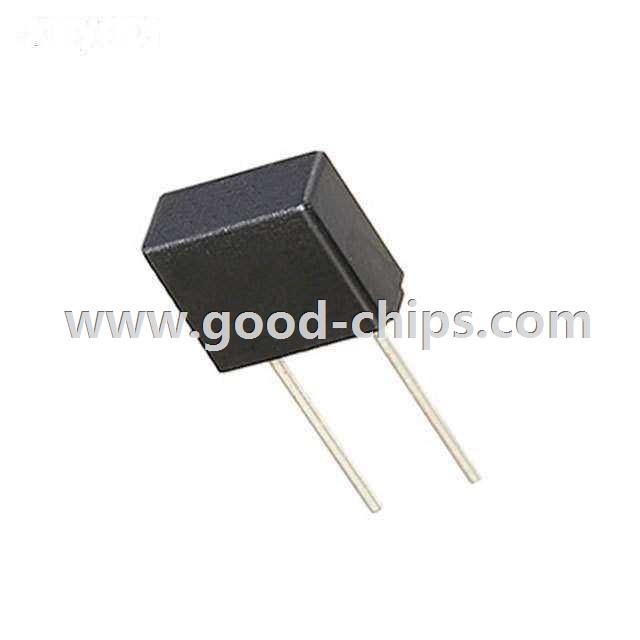

Manufacturer Part Number: | 0697H8000-05 |
---|---|
Manufacturer: | Bel Fuse Inc. |
Product Category: | Fuses |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE BRD MNT 8A 350VAC 72VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0697H8000-05 Datasheet |
Internal Part Number | 898-0697H8000-05 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Bel Fuse 0697H Fuses Product Overview | Digi-Key Daily | |
Featured Product | 0697H UL, Slow-Blow, Radial, 350 VAC Fuse Power Solutions and Protection | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Bel Fuse Inc. | |
Series | 0697H | |
Packaging | Bulk | |
Part Status | Active | |
Fuse Type | Board Mount (Cartridge Style Excluded) | |
Current Rating | 8A | |
Voltage Rating - AC | 350V | |
Voltage Rating - DC | 72V | |
Response Time | Slow | |
Package / Case | Radial, Box | |
Mounting Type | Through Hole | |
Breaking Capacity @ Rated Voltage | 150A AC, 200A DC | |
Melting I²t | 325 | |
Approvals | cURus | |
Operating Temperature | -55°C ~ 125°C | |
Color | - | |
Size / Dimension | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
DC Cold Resistance | 0.007 Ohm | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0697H8000-05 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0697H8000-05 is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of 0697H8000-05 is new and unused, you can buy 0697H8000-05 Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0697H8000-05.
