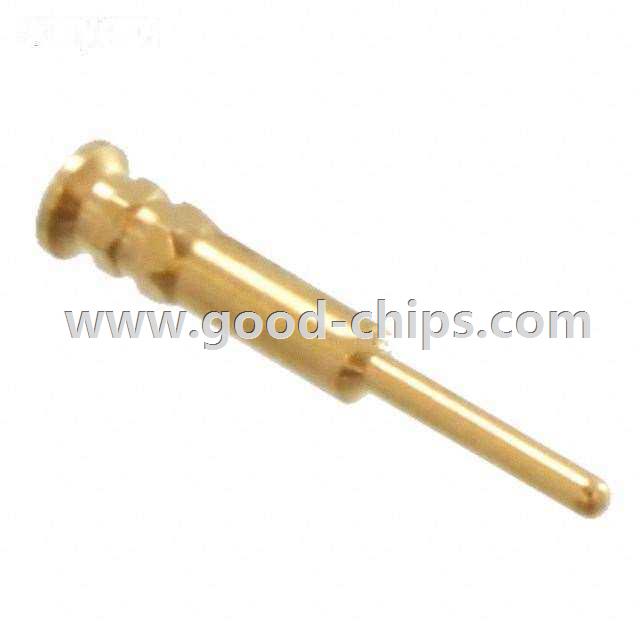

| Manufacturer Part Number: | 0542-0-00-21-00-00-03-0 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0542-0-00-21-00-00-03-0 Datasheet |
| Internal Part Number | 898-0542-0-00-21-00-00-03-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin, Single Post Connectors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 0542 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | PC Pin | |
| Terminal Style | Single End | |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia | |
| Pin Size - Below Flange | - | |
| Length Above Flange | 0.279" (7.09mm) | |
| Length Below Flange | - | |
| Length - Overall | 0.295" (7.49mm) | |
| Flange Diameter | 0.055" (1.40mm) | |
| Mounting Hole Diameter | 0.039" (0.99mm) | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit, Hex | |
| Insulation | Non-Insulated | |
| Board Thickness | - | |
| Contact Material | Brass Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 20µin (0.51µm) | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0542-0-00-21-00-00-03-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0542-0-00-21-00-00-03-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 0542-0-00-21-00-00-03-0 is new and unused, you can buy 0542-0-00-21-00-00-03-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0542-0-00-21-00-00-03-0.
