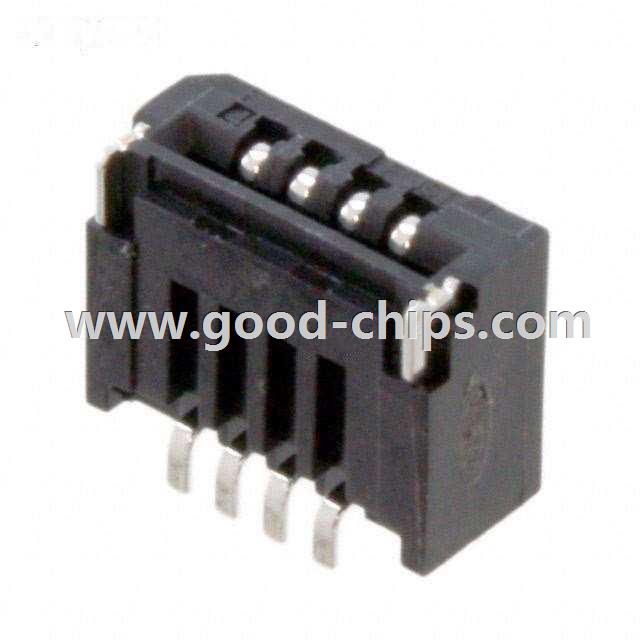

| Manufacturer Part Number: | 04FMN-SMT-A-TF(LF)(SN) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 04FMN-SMT-A-TF(LF)(SN) Datasheet |
| Internal Part Number | 898-04FMN-SMT-A-TF(LF)(SN) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | FMN Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | JST Sales America Inc. | |
| Series | FMN | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FFC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top | |
| Number of Positions | 4 | |
| Pitch | 0.039" (1.00mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.118" (3.00mm) | |
| Locking Feature | - | |
| Cable End Type | Straight | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Housing Material | Polyamide (PA6T), Nylon 6T | |
| Actuator Material | - | |
| Features | Low Insertion Force (LIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -25°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.5A | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 04FMN-SMT-A-TF(LF)(SN) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
04FMN-SMT-A-TF(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 04FMN-SMT-A-TF(LF)(SN) is new and unused, you can buy 04FMN-SMT-A-TF(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 04FMN-SMT-A-TF(LF)(SN).
