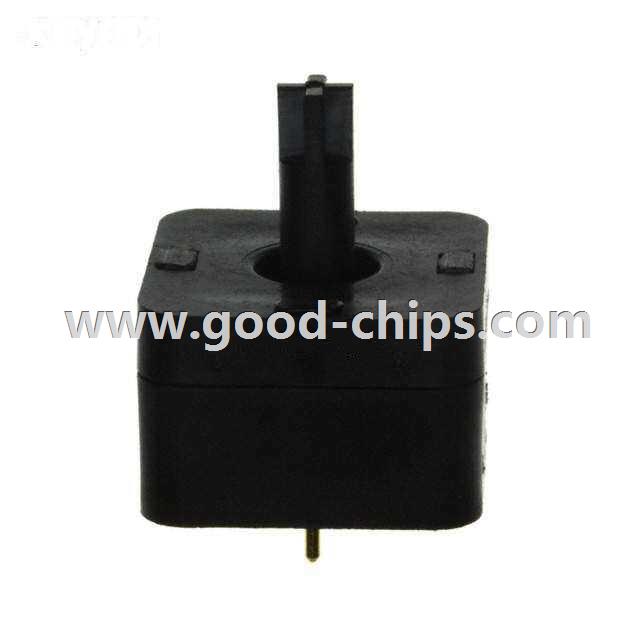

| Manufacturer Part Number: | 04A |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9354 Pieces |
| Unit Price: | Quote by Email |
| Description: | Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 04A Datasheet |
| Internal Part Number | 898-04A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | 04A Series Contact Spring 20/Aug/2012 | |
| Online Catalog | 4 Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | Grayhill Inc. | |
| Series | 04 | |
| Part Status | Active | |
| Type | Navigation Switch, 2 - Axis | |
| Actuator Type | Plunger for Cap | |
| Switch Function | 4-Way Directional | |
| Functions, Extra | - | |
| Output | Digital (Mechanical Switch) | |
| Voltage - Supply | - | |
| Current Rating | 250mA (AC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | - | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | -40°C ~ 85°C | |
| Panel Cutout Dimensions | - | |
| Ingress Protection | - | |
| Features | - | |
| Mechanical Life | - | |
| Electrical Life | 500,000 Cycles | |
| Operating Force | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 04A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
04A is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 04A is new and unused, you can buy 04A Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 04A.
