Manufacturer Part Number: | 0480251090 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Modular Connectors - Jacks With Magnetics |
Available Quantity: | 12158 Pieces |
Unit Price: | Quote by Email |

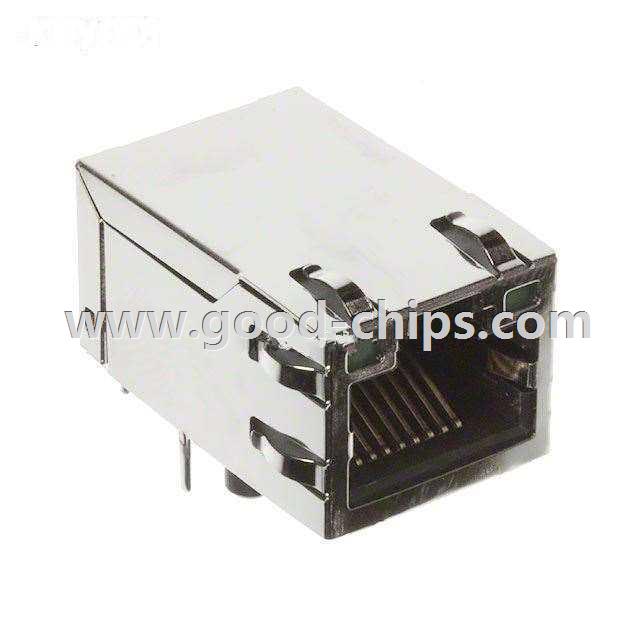

Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 0480251090 Datasheet |
Internal Part Number | 898-0480251090 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 48025-1090 Cert of Compliance | |
3D Model | 48025-1090.stp | |
Online Catalog | 48074 and 48025 Series | |
Category | Connectors, Interconnects | |
Family | Modular Connectors - Jacks With Magnetics | |
Manufacturer | Molex, LLC | |
Series | 48025 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | RJ45 | |
Number of Ports | 1 | |
Number of Rows | 1 | |
Applications | 10/100 Base-T, AutoMDIX | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Height Above Board | 0.524" (13.31mm) | |
LED Color | Green - Green | |
Number of Cores per Jack | 4 | |
Shielding | Shielded, EMI Finger | |
Features | Board Guide | |
Tab Direction | Up | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Contact Finish Thickness | 50µin (1.27µm) | |
Shield Material | Brass | |
Housing Material | Polyamide (PA), Nylon, Glass Filled | |
Operating Temperature | -40°C ~ 70°C | |
Standard Package | 1,080 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 0480251090 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
0480251090 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0480251090 is new and unused, you can buy 0480251090 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0480251090.
