| Manufacturer Part Number: | 0475070001 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Spring Loaded |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

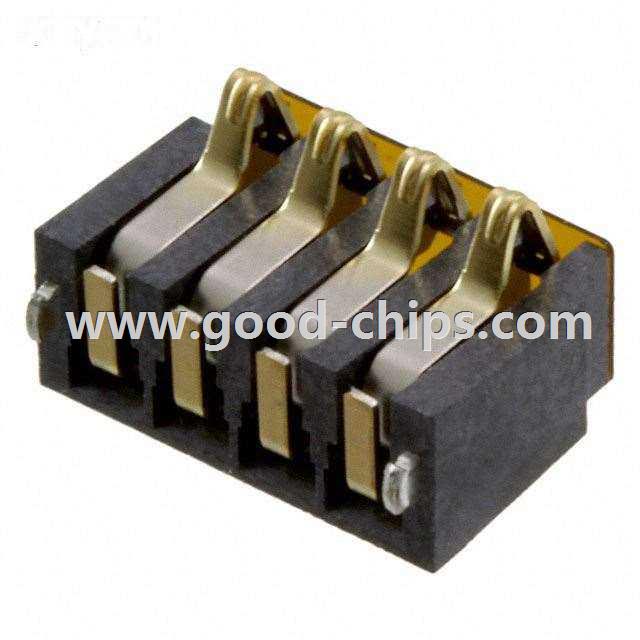

| Description: | 4 Position Spring Battery Contact Connector Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0475070001 Datasheet |
| Internal Part Number | 898-0475070001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 475070001 Cert of Compliance | |
| Featured Product | Battery Connectors | |
| 3D Model | 47507-0001.stp | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Spring Loaded | |
| Manufacturer | Molex, LLC | |
| Series | 47507 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Connector Type | Battery Contact | |
| Number of Contacts | 4 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Surface Mount | |
| Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 7,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0475070001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0475070001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0475070001 is new and unused, you can buy 0475070001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0475070001.
