| Manufacturer Part Number: | 0471511001 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | USB, DVI, HDMI Connectors |
| Available Quantity: | 9710 Pieces |
| Unit Price: | Quote by Email |

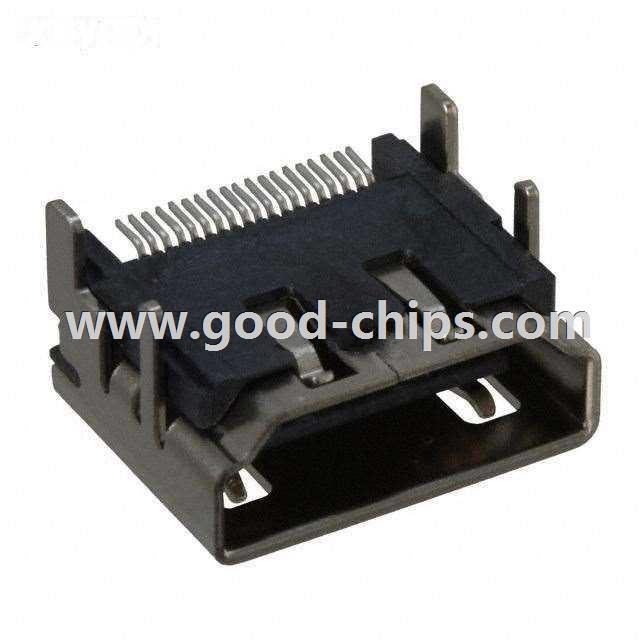

| Description: | HDMI Receptacle Connector 19 Position Surface Mount, Right Angle, Horizontal |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 0471511001 Datasheet |
| Internal Part Number | 898-0471511001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | High Definition Multimedia Interface (HDMI) Molex - Micro USB | |
| RoHS Information | 47151-1001 Cert of Compliance | |
| Featured Product | High Definition Multimedia Interface Connectors | |
| 3D Model | 47151-1001.stp | |
| PCN Design/Specification | Multiple Devices Resin Supplier 01/Jul/2015 | |
| Online Catalog | Molex - HDMI | |
| Category | Connectors, Interconnects | |
| Family | USB, DVI, HDMI Connectors | |
| Manufacturer | Molex, LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | HDMI | |
| Number of Contacts | 19 | |
| Gender | Receptacle | |
| Specifications | - | |
| Mounting Type | Surface Mount, Right Angle, Horizontal | |
| Features | Detent Lock | |
| Ingress Protection | - | |
| Standard Package | 350 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 0471511001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
0471511001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0471511001 is new and unused, you can buy 0471511001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 0471511001.
