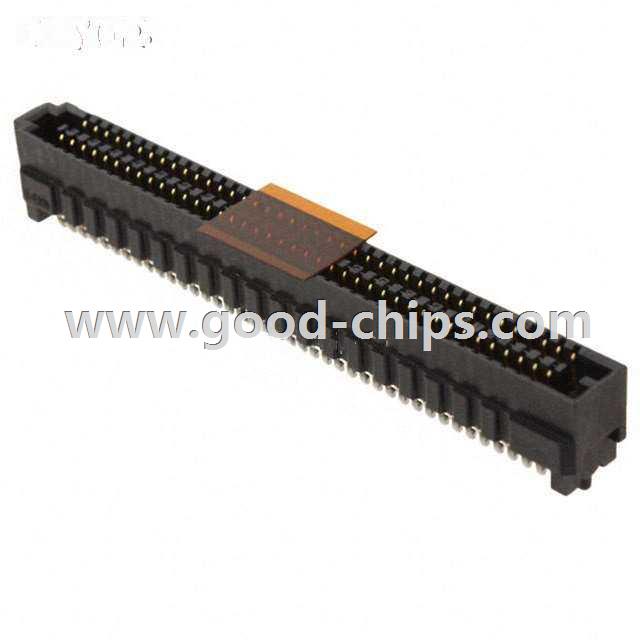

0465574545

0465574545
Manufacturer Part Number:0465574545
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9220 Pieces
Unit Price:Quote by Email
Description:160 Position Connector High Density Array, Female Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 0465574545 Datasheet
0465574545´s Parameters
Internal Part Number898-0465574545
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information46557-4545 Cert of Compliance
3D Model46557-4545.stp
46557-4545.igs
46557-4545.prt
Online Catalog SEARAY™ Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerMolex, LLC
SeriesSEARAY™ 46557
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeHigh Density Array, Female
Number of Positions160
Pitch0.050" (1.27mm)
Number of Rows4
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights10mm, 10.5mm, 11mm, 11.5mm, 12.5mm, 13mm, 15mm
Height Above Board0.317" (8.05mm)
Standard Package 210
Weight0.001 KG
ApplicationEmail for details
Replacement Part0465574545
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

0465574545 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 0465574545 is new and unused, you can buy 0465574545 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 0465574545.
